Full Automatic Film Covering Machine FMJ2500

This machine is used for covering protective film of I.G.unit. It's used between the insulating glass production line and sealing line.

Full Automatic Film Covering Machine FMJ2500

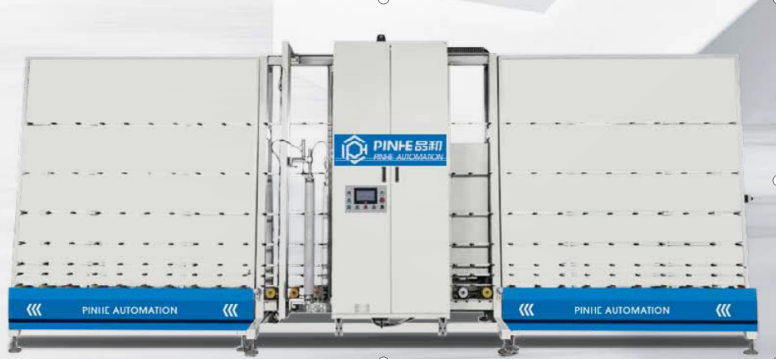

insulating glass cover film machine

Overview of the machine

Various parameters are adjustable, and all actions can be manually controlled on the HMI with real-time feedback.
The device supports both double-sided and single-sided film application.
The vertical design saves space, and vertical-to-vertical glass transfer is labor-saving and safe.
The operation interface/debugging features manual, automatic, and pause functions; there is a second-level password for operation/maintenance (operators cannot adjust parameters).
The protective film is designed with layers, allowing for flexible film size combinations and reducing film costs.
The film is cut using a rolling blade with automatic pressure control to prevent scratches on the glas

Features and advantages

The machine has three functions: double-sided laminating, film cutting and automatic film cutting. The film cutting directions are up, left and right. It is equipped with a heating wire, which automatically cuts the film, making the film cutting more thorough and efficient.

①Double-sided lamination.

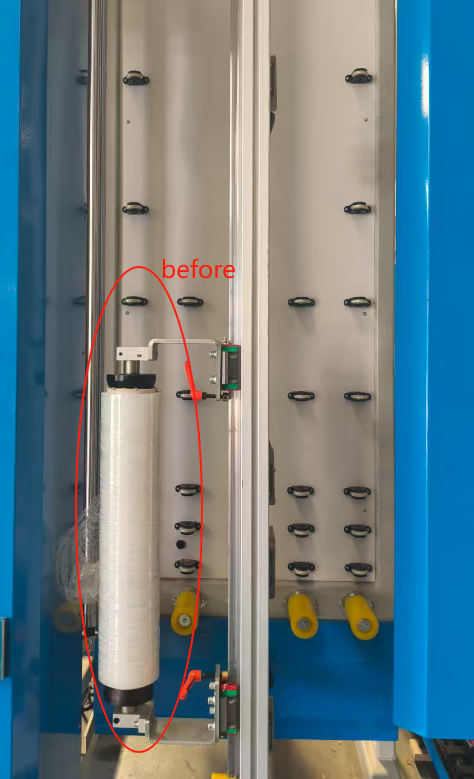

The film roll in front of the laminating machine

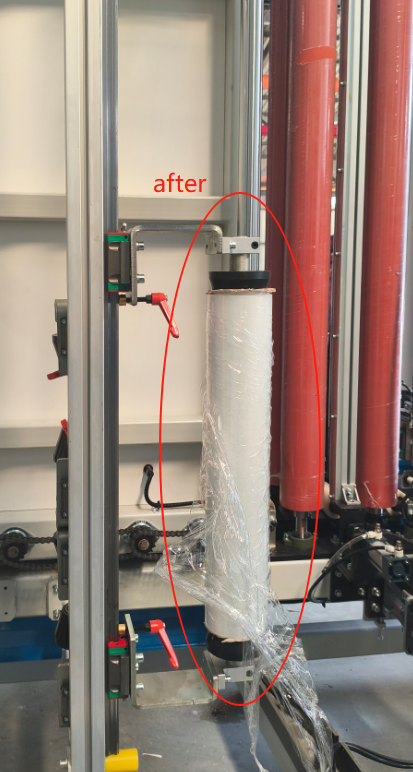

The film roll in back of the laminating machine

②Automatic film cutting (on glass surface).

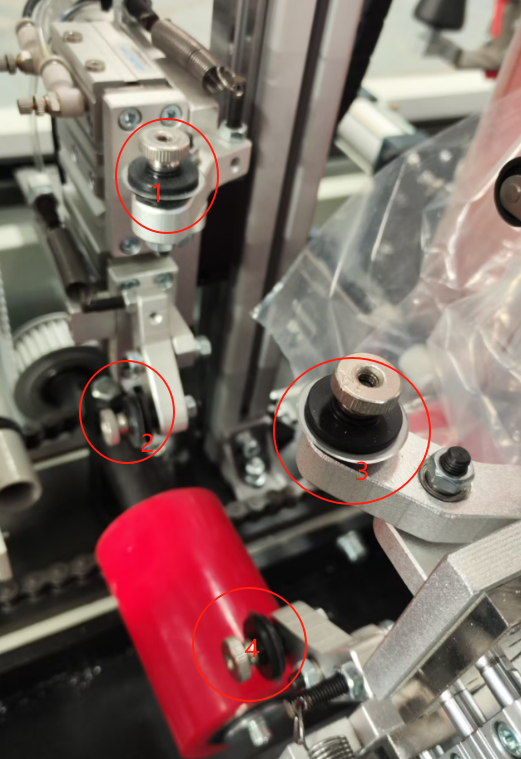

Automatic film cutting can cut the film on glass surface

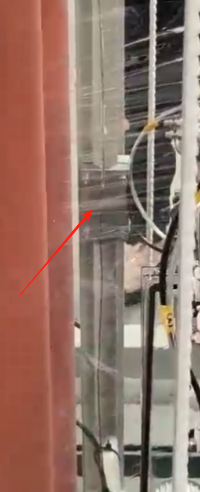

③Automatic film cutting(between glasses): The heating wire automatically cuts the film.

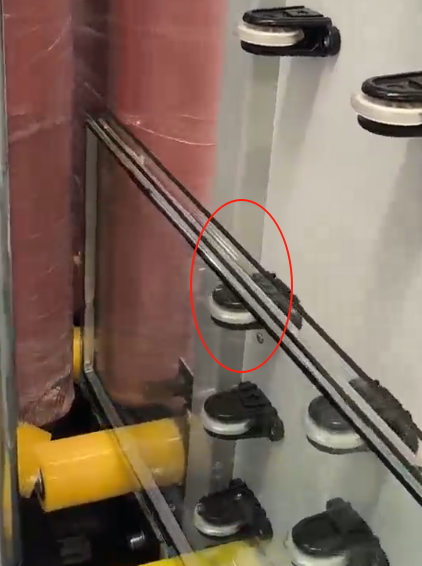

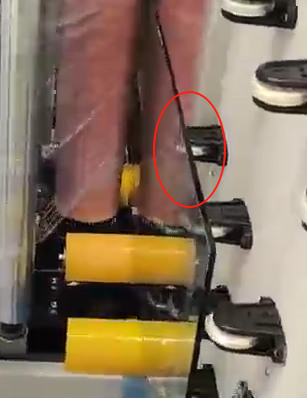

The whole machine can coat glass of different thicknesses, with the minimum glass thickness being 4mm and the maximum being 55mm.

Fully automatic and efficient intelligent panel, which can be programmed to meet the requirements of simultaneous coating of various sizes of glass.

About the film: The machine uses electrostatic film, the film can be customized, logo customization, etc.

The whole machine runs smoothly, the film cutting is stable and the efficiency is high.
