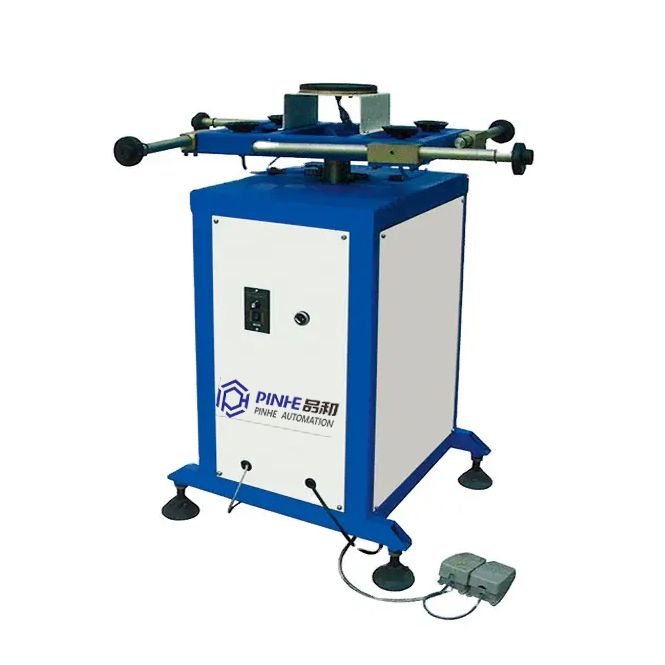

PINHE Pneumatic rotating table for insulating glass sealing machine HZT01

This is a working table used together with pneumatic two components sealant sealing machine. When the machine working, will put insulating glass unit on the rotating table, fix it with the suctions, for easier operation of sealing process.

Download

PINHE Pneumatic rotating table for insulating glass HZT01

Function of this pneumatic rotating table for insulating glass is turning the glass fixed on the table in 360 degree by stepper, so as to deep process the glass sheet or glass unit. Main parts of the machine includes 4 smaller suction cups and 4 foldable arms, and with 1 bigger suction cup optional.

The pneumatic rotating table for insulating glass is nomally used as assisting equipment of some sealing machines, like pneumatic double components sealing machine, or hot melt sealant sealing machines. When it's working, glass will be fixed by the suction cups, for glass size smaller than 500mm, the bigger suction cup in middle will be OK, while for larger size glass, can remove the bigger suction cup and fix by the 4 smaller cups, and in the same time, the 4 arms can be extended for supporting.

When the pneumatic rotating table for insulating glass is working with sealing machine, the worker just need to stand at one side of the glass, when step on the foot switch, the table will be rotated by 90 degree, to seal on another side of the glass unit, after that step the foot switch of the pneumatic rotating table for insulating glass again, to work on one side more, untill all 4 sides of the glass unit sealed well.

Overview of the whole machine

1. Completely pneumatic rotating table for insulating glass, easy to move and simple in operation. The pneumatic system provides smooth and controlled movement, enabling operators to apply sealants such as butyl, silicone, or polyisobutylene (PIB) with high accuracy and consistency.

2. Two steppers for different functions, controlling separately, one is for fixing glass sheet by suctions, the other for rotating the table.

3. Glass will be rotated by 90° by one time stepping, easy operation and high efficiency. And the pneumatic rotating table for insulating glass 360° rotating available.

4. The arms can be extended for large size glass sealing.

5. Thispneumatic rotating table for insulating glass for insulating glass adopts eccentric wheel, easily adjust the wheel height to guarantee same height with the suctions.

6. It is an important machine normally working with pneumatic two components silicone sealing machine, or manuall sealing guns.

Pneumatic rotating table for insulating glass is a specialized piece of equipment designed to streamline the application of sealants or adhesives during the production of insulated glass units (IGUs). This table features a rotating platform powered by a pneumatic system, allowing glass panels to be easily turned and positioned for precise and efficient coating on all edges.

Key advantages of this pneumatic rotating table for insulating glass include improved ergonomics, as it reduces the need for manual handling and repositioning of heavy glass panels. This pneumatic rotating table for insulating glass also enhances coating uniformity, which is critical for ensuring the airtightness and durability of the insulated glass unit. Additionally, the pneumatic rotating table for insulating glass is energy-efficient and low-maintenance, making it a cost-effective solution for high-volume production environments.

Overall, the pneumatic rotating table for insulating glass is an essential tool for modern insulated glass manufacturing, offering precision, efficiency, and enhanced product quality.
