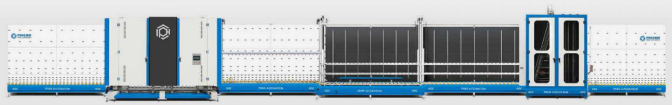

PINHE Automatic Gas-filled Insulating Glass Production Line LBG3060

This machine is used for producing insulating glass with argon gas.
It's suitable for both double and triple glass, can make special shaped or stepping glass.

PINHE Good Quality Insulating Glass Production Line Machine

LBG3060

Overview of the machine

1、Automatic numerical control insulating glass production line, automatic LOW-E.

2、PLC control. touch sensitive screen man machine interface.

3、Adopt imported vacuum generator and sucker resulted in perfect suction effect to the glass.

4、Produce the Step IG Unit and three Piece IG production according to the customers’ different request.

5、Full distance automatic changeable frequency speed adjustment, which can save work waiting time and improve production efficiency./6、Microcomputer 7、6、Microcomputer program Digital Control Production Line, save labor waiting time, improve production efficiency.

7、In-board inflatable, under the inflatable curtain, the concentration of national standards. Pressing bar with servo pressing, synchronous belt drive, smooth operation, even pressing.

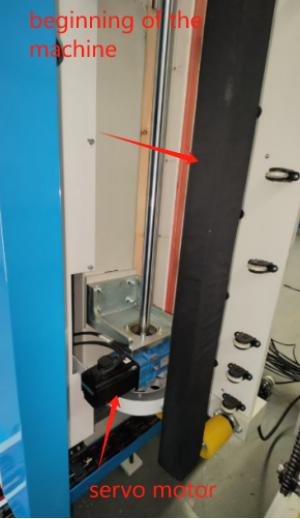

8、Glass support, size plate positioning, follow the seal baffe are driven by servo motor, efficient and reliable.

Features and advantages

1、The whole process is controlled by international mainstream sports PLC and frequency converter. The automation degree is high, the whole line guarantees the synchronization of transition speed, and the operation is reliable and stable.

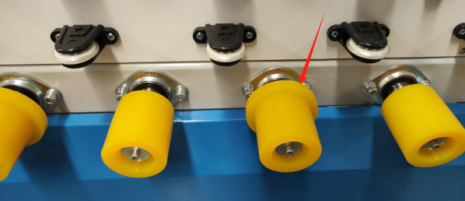

2、High quality roller with groove, to guarantee the glass will be loaded easily with safety

.

3、It is equipped with an automatic identification device for LOW-E and laminated glass, which can automatically identify the front and back of LOW-E and metal coated glass to avoid damage to the film layer.

4、Washing machine body is made of thickened stainless steel. The components and screws of the parts in contact with water are all made of stainless steel or waterproof aluminum. The bottom adopts double-layer stainless steel structure, which will not rust after long-term use and is easy to maintain.

5、The washing section uses three sets of 1010 nylon soft brushes and four sets of water nozzles, which are divided into two parts by a vertical stainless steel panel, which not only ensures that the coating is not scratched, but also achieves the best cleaning effect

.

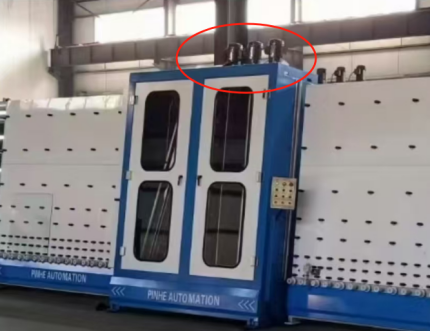

6、Each set of brushes is controlled by an independent motor and is equipped with a ladder for easy maintenance.

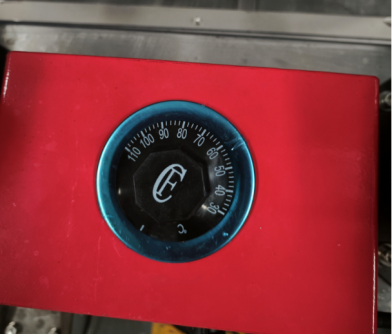

7、The stainless steel water tank adopts zone washing and three-level glass washing. Dirty water and clean water are not mixed, and the glass is washed more cleanly. The water heating function can be turned on at low temperatures, and the water temperature is automatically adjusted according to the temperature control.

8、The drying section adopts high-power, high-pressure fan with air heating function. Stainless steel wind knife provides low noise and fast drying speed. The unique circulating air design makes the glass drying system energy-efficient and low-noise. The fan operates intermittently and automatically runs at no load when there is no glass.

9、The drying section is equipped with sound insulation sponge to insulate and reduce noise, and there is a sound insulation board at the outlet to block wind and reduce noise.

10、Glass detector on bottom of drying section, if the glass stops in machine, machine will not continue working.

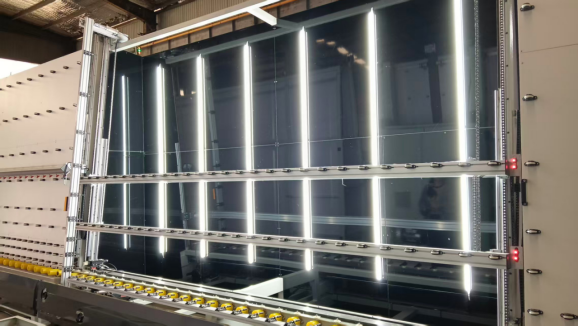

11、The aluminum frame assembly section lighting inspection uses a black background plate, which is not easy to hurt the workers’ eyes and is convenient for checking stains on the glass; there is a door on the back for easy maintenance or cleaning of the glass

.

12、The aluminum frame positioning of the aluminum frame assembly section is supported by aluminum alloy profiles, and the glue depth is adjusted by a hand wheel.

13、The front and back movement of the external press section panel is hydraulically controlled, and the operation is stable and reliable. The crossbeam lifting is controlled by a brake motor plus a frequency converter, which is stable and has high control accuracy.

14、The automatic panel flat pressing section (inside panel gas-filling ) adopts ball screw nut pair pressing and linear guide rail guidance to ensure that the glass is pressed evenly without breaking.

15、Argon gas will be filled into the glass unit from bottom, and both left and right sides of the glass unit will be well sealed during fill process, the efficiency is high and also saving gas.After enough time filling,its efficiency can up to 95%.

16、Glass size detectors at the beginning, then the machine open certain numbers of gas nozzles. Gas nozzles which are not open will not release argon, to avoid waste of argon gas and save cost.

17、Automatically detect the pressure of argon gas and alarm when the pressure is low.

18、The automatic production line is fully functional, with functions such as double-glass, triple-glass, special-shaped, external panel pressing, internal panel pressing, and internal panel gas-filling.

19、The whole machine is made of thickened steel, with a dense structure and multiple inclined column supports, which makes the machine more durable and will not deform after long-term use

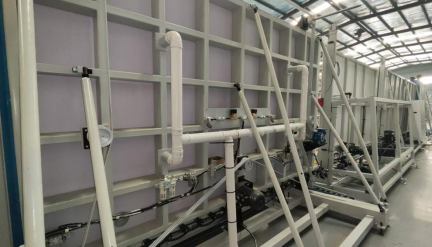

Durable insulating glass production machine

Item code	LBG3060
Total power	90KW
Max working size	3000×6000mm
Min working size	280×450mm
Glass sheet thickness	3~30mm
Max I.G unit thickness	12~80mm
Glass Washing Speed	2~12m/min
Working speed	2~45m/min
Air Pressure	1MPa
Overall dimension	42000×3200×3600mm
