PINHE Automatic Insulating Glass CNC Sealing Machine Line

This machine is used for the secondary sealing of insulating glass
2. PINHE Automatic Insulating Glass CNC Sealing Line is suitable for large-scale production, high product quality, low labor intensity, labor saving, and high production efficiency.
3. The whole machine adopts a human-machine interface, and the operation is simple, convenient and intuitive.

Automatic Insulating Glass CNC Sealing Machine

ZNJ2535-I

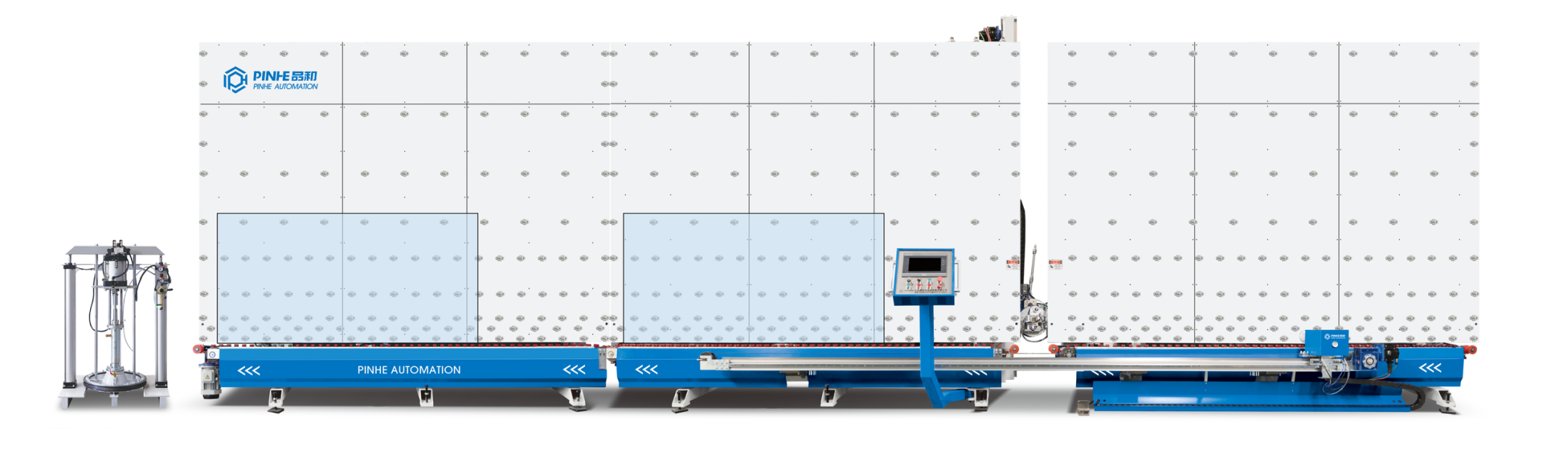

Main machine diagram

Overview of the whole machine

Suitable for large-scale glass processing enterprises, it reduces labor intensity, saves manpower, and improves production efficiency.

Fully intelligent touchscreen human-machine interface, simple and convenient operation.

The servo control system uses a world-renowned brand and offers stable performance.

The synchronous belt conveyor ensures smooth glass transportation and precise positioning.

Key components of the equipment are crafted from specialized materials, ensuring stable and reliable operation and a long service life.

After glue application, the glass perimeter is smooth and free of air lines, with rounded corners and a smooth surface, eliminating the need for corner trimming.

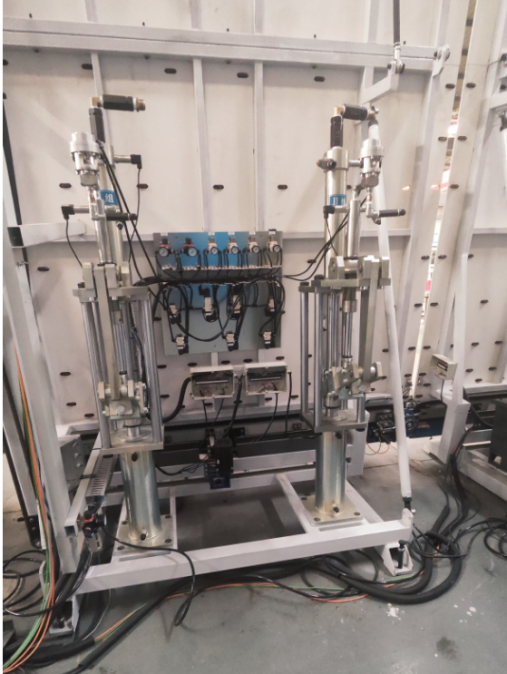

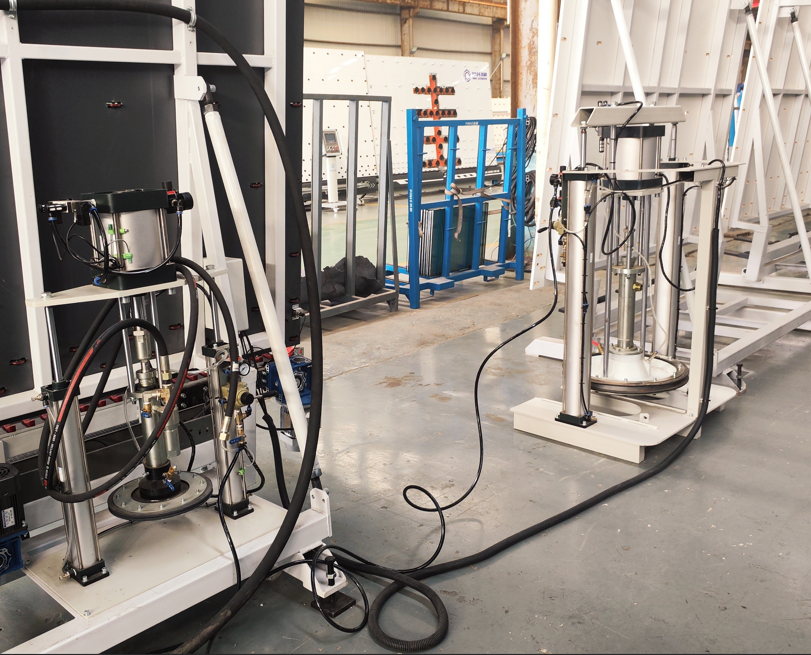

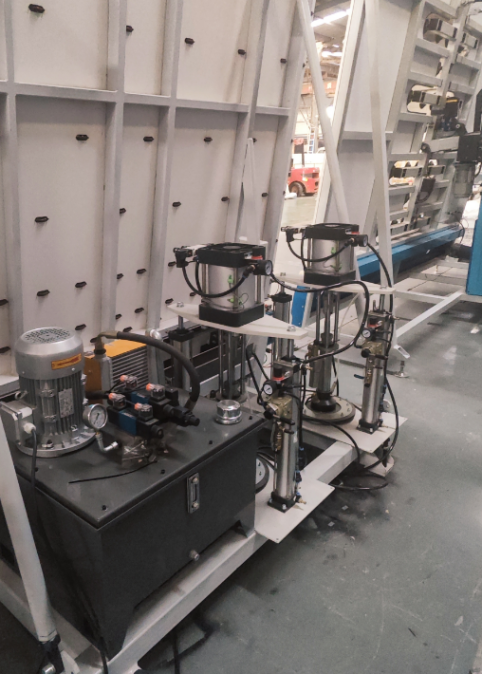

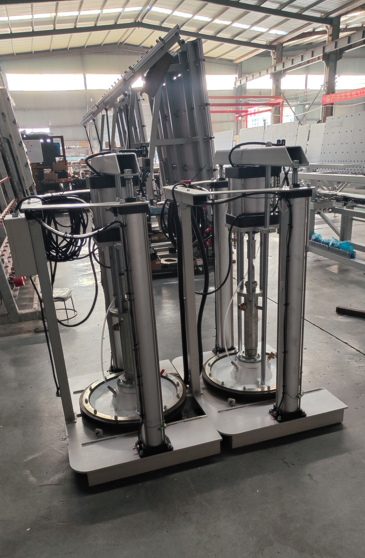

Equipped with two glue supply systems, it allows for quick switching between two sealants with one-touch operation.

Supports triple-glazing glue application.

Features and advantages

The fully automated sealing line utilizes a fully automated process to ensure smooth and even application of glue, ensuring a smooth and silky-smooth process.

It adopts Yaskawa servo system, ensuring a smooth application process and stable performance.

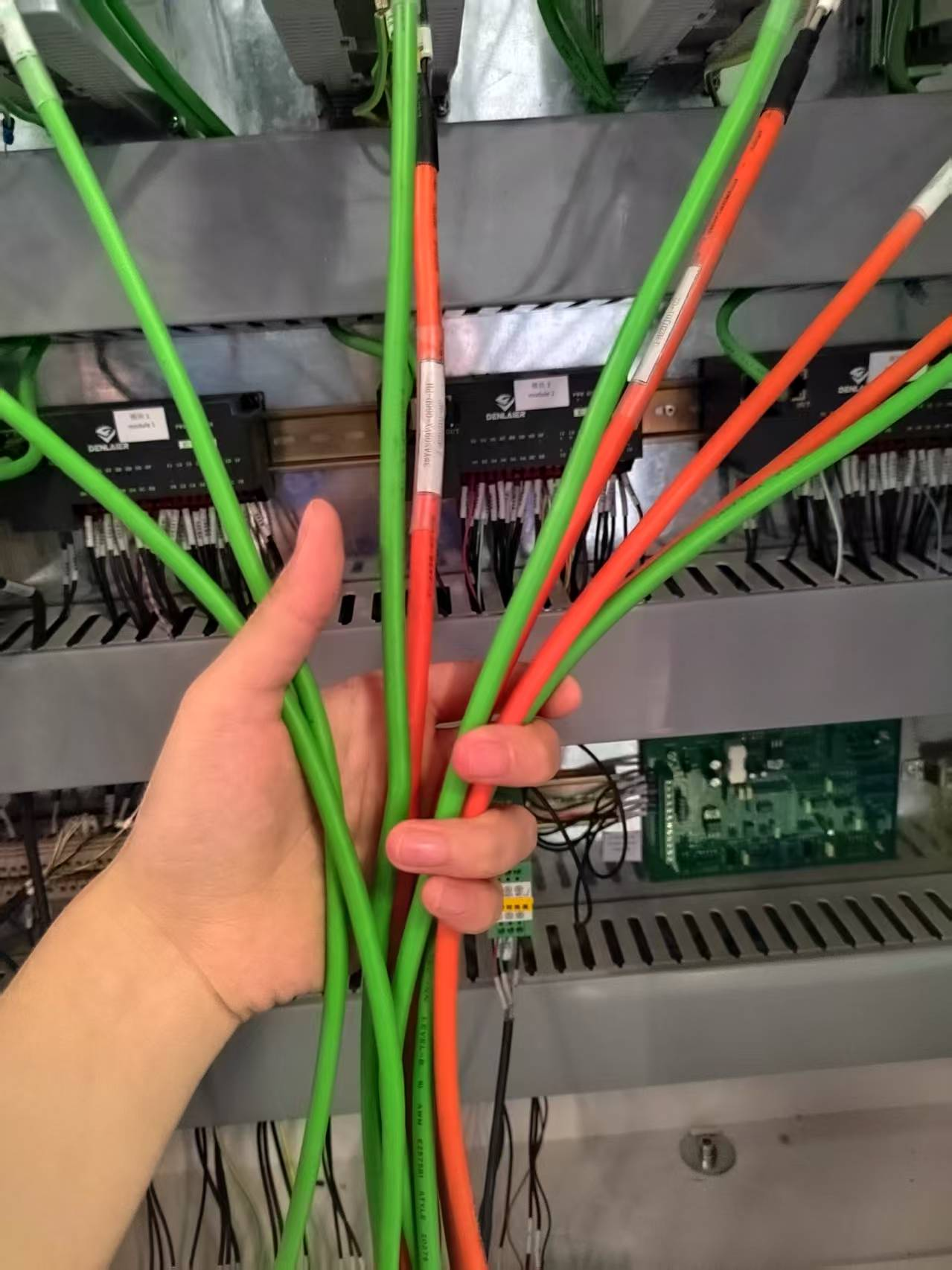

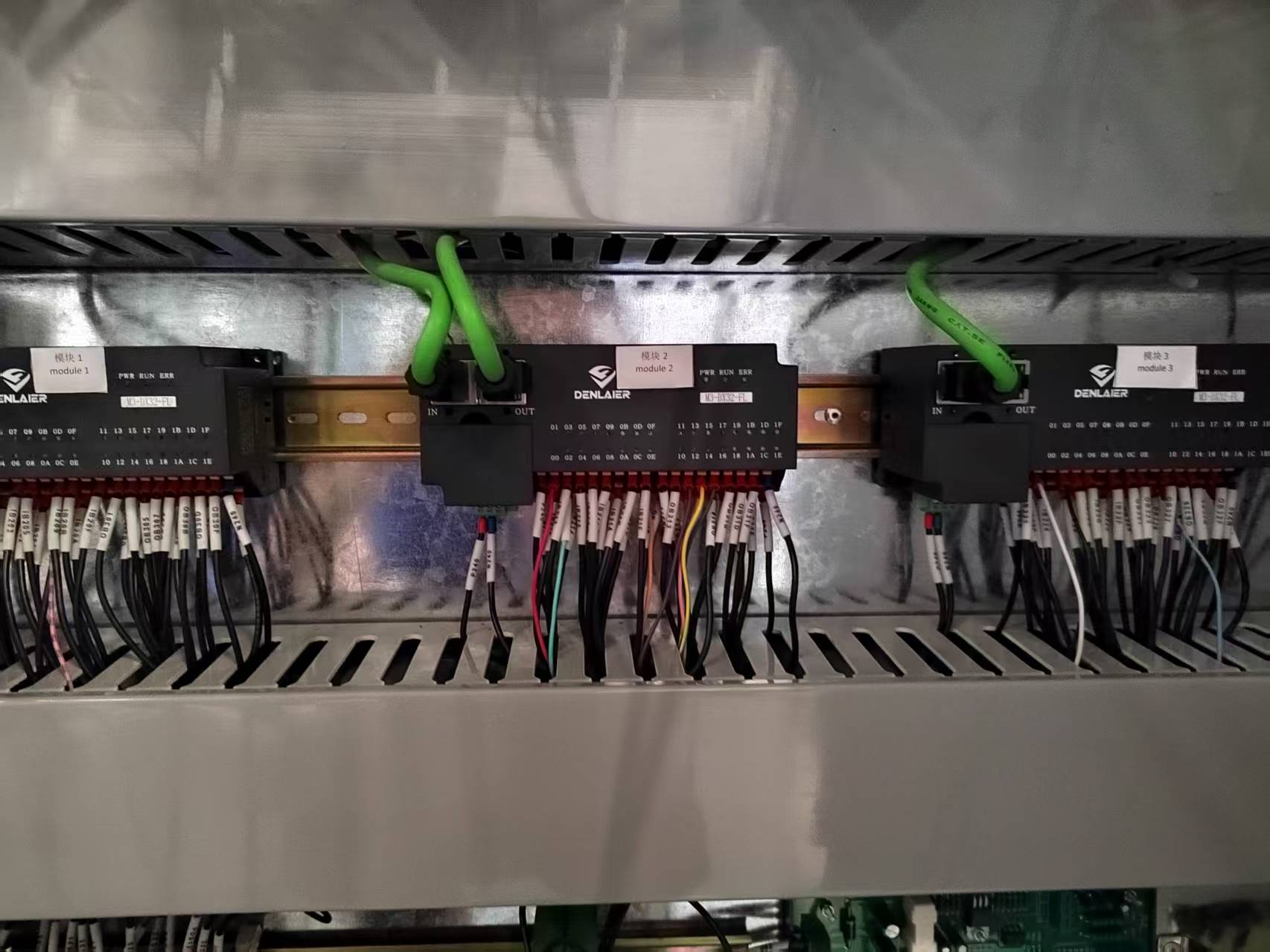

The whole machine adopts bus module imported from Japan, which has high reliability and less wiring.

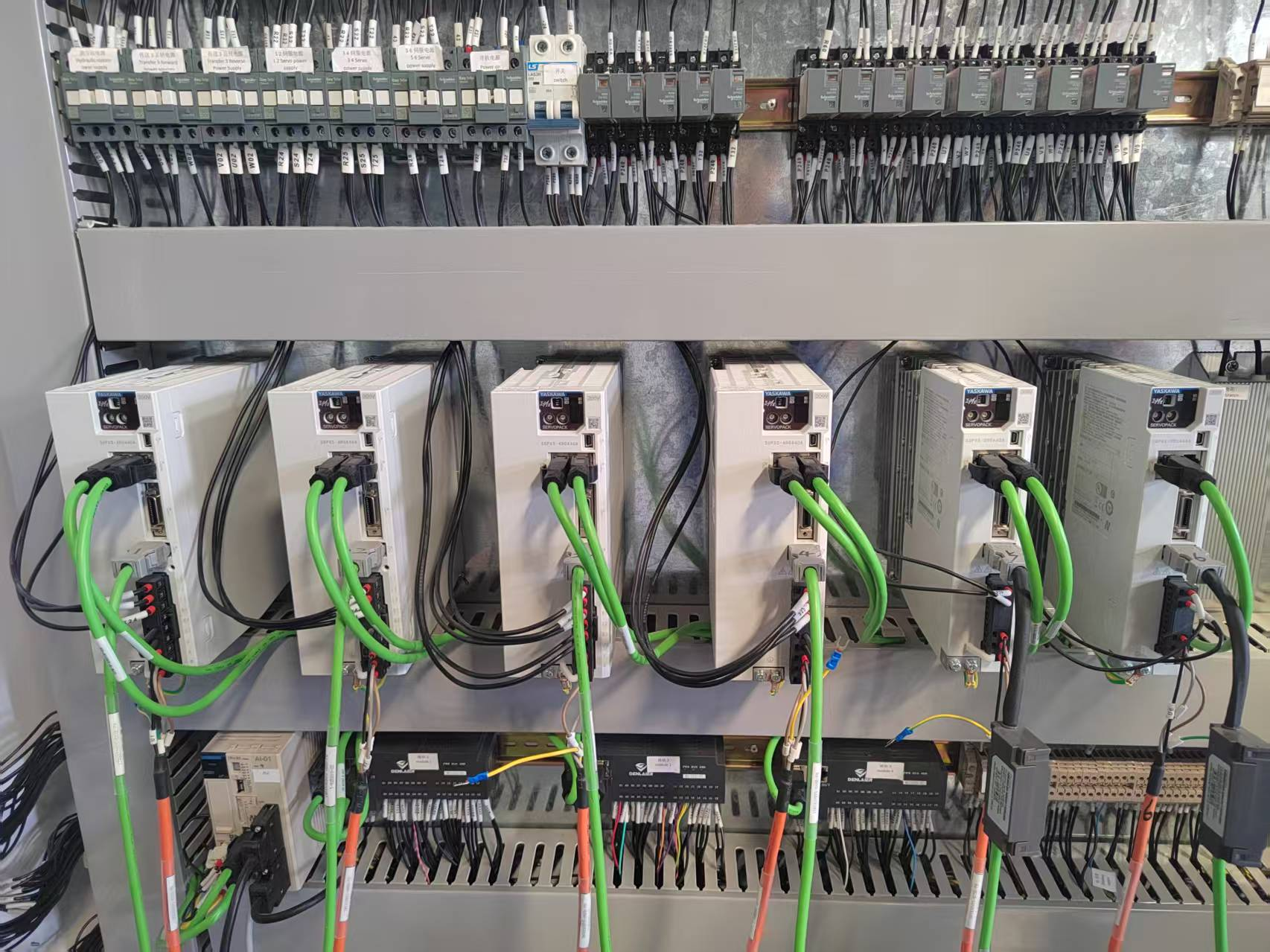

The whole machine adopts original imported shielded cable that can withstand 5 million bending times, with stable signal, strong anti-interference ability and long service life.

The whole machine adopts original imported brands, which have low failure rate, safe and reliable.

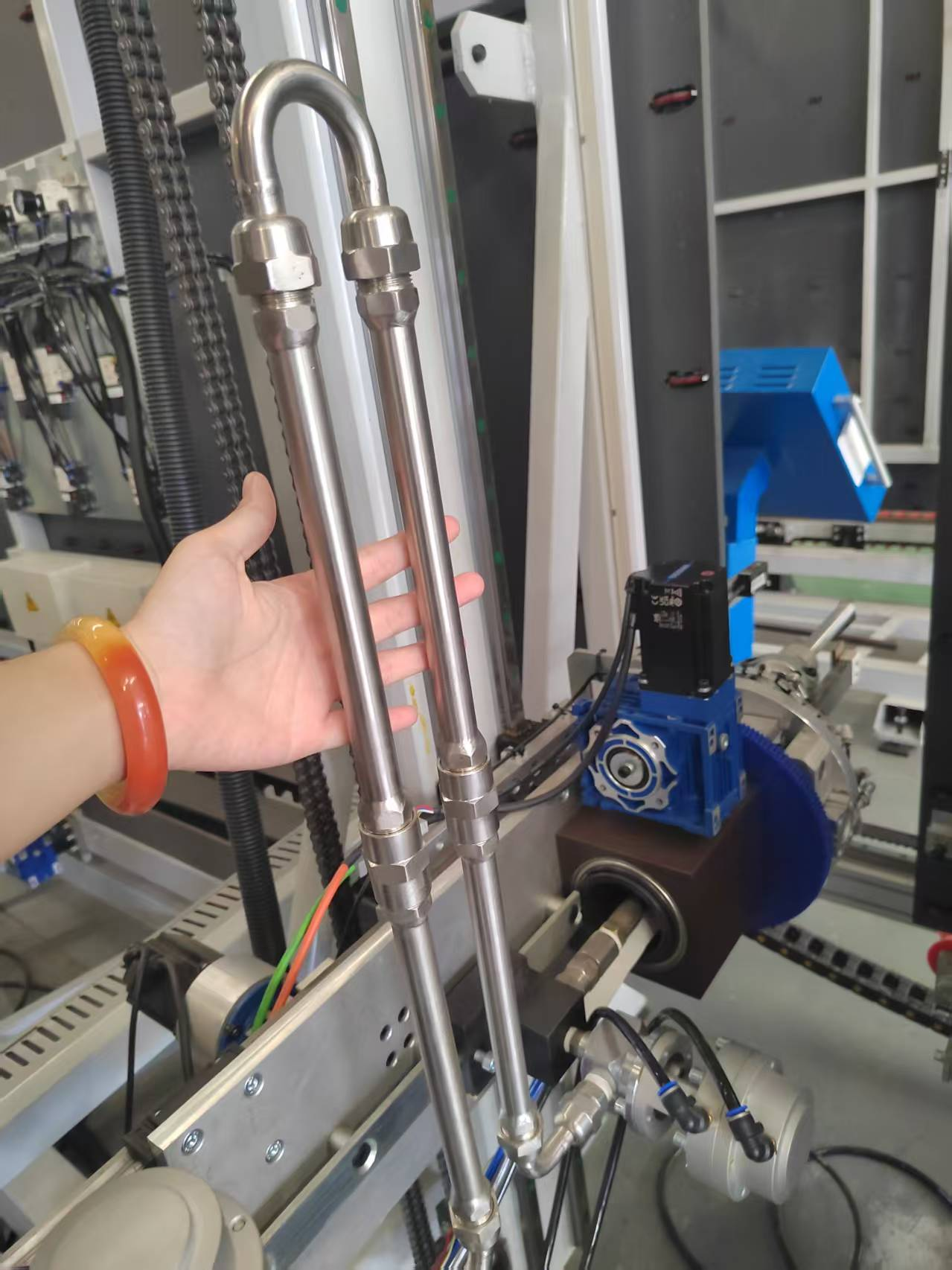

Adopts a special glue mixer with a thickened pipe diameter and a hemp twist stirring core. In the cold weather, the glue flow rate is large and the glue application speed is fast.

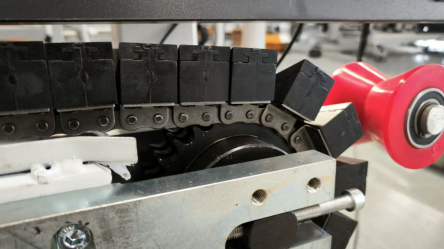

The whole machine adopts chain-type wear-resistant chain-belt, which has large load capacity and long service life.

The whole machine uses square guide rails, which makes the operation more stable when sucking glass.

The whole machine is equipped with a movable operating table, which is convenient for operation without getting in the way.

Automatic Insulating Glass CNC Sealing Machine

Elevate your insulating glass manufacturing with our advanced Dual-Supply Sealing Line. Engineered for high-precision, continuous output, the dual-system seamlessly manages two-part sealants with flawless mixing ratios and uninterrupted feeding. Boost operational efficiency, eliminate costly downtime, and deliver superior airtightness for top-tier glazing performance

PINHE Hot Melt Extruder Machine HM03

Hot melt sealant extruder machine is a special glue coating equipment used to produce hot melt glue type insulating glass . After the hot melt adhesive is heated and melted by the heating system of this machine, it is pushed forward by the pump in the machine, and then evenly coated at the double glass interval by the glue gun to complete the hollow sealing.

PINHE Pneumatic rotating table for insulating glass sealing machine HZT01

This is a working table used together with pneumatic two components sealant sealing machine. When the machine working, will put insulating glass unit on the rotating table, fix it with the suctions, for easier operation of sealing process.
