    Automatic Aluminum Spacer Bar Bending Machine LZJ02

    The LZJ02 Automatic Aluminum Spacer Bar Bending Machine is designed for high-precision, efficient glass processing. It features intelligent CNC control, enabling seamless, one-piece bending for various shapes. With its intuitive interface and robust performance, it significantly reduces material waste and labor costs, making it the ideal solution for modern high-quality insulating glass production

     Automatic Alumimum Spacer Bar Bending Machine LZJ02

    Bar Bending Machine

    Overview of the machine
    Suitable for bending aluminum spacers for insulating glass.
    PLC control system, touch screen human-machine interface, simple and convenient equipment operation.
    Adopt CNC servo motor feeding system and CNC bending angle control system.
    Four storage tanks can store four kinds of aluminum bars with different specifications.
    When bending and cutting, the joint and arc between aluminum bars are automatically avoided, and after bending,the aluminum bars are automatically cut.
    Manual operation function,convenient for equipment debugging and maintenance.
    Can be folded into triangle, rectangle, regular pentagon, regular hexagon, arc and other shapes.
    The machine is equipped with a label printing device, which can print processing information online in real time.
    Features and advantages
    PLC control and touch screen human-machine interface are adopted, and parameter setting is simple and fast.
    The aluminum frame size can be adjusted with an accuracy of 0.5mm.

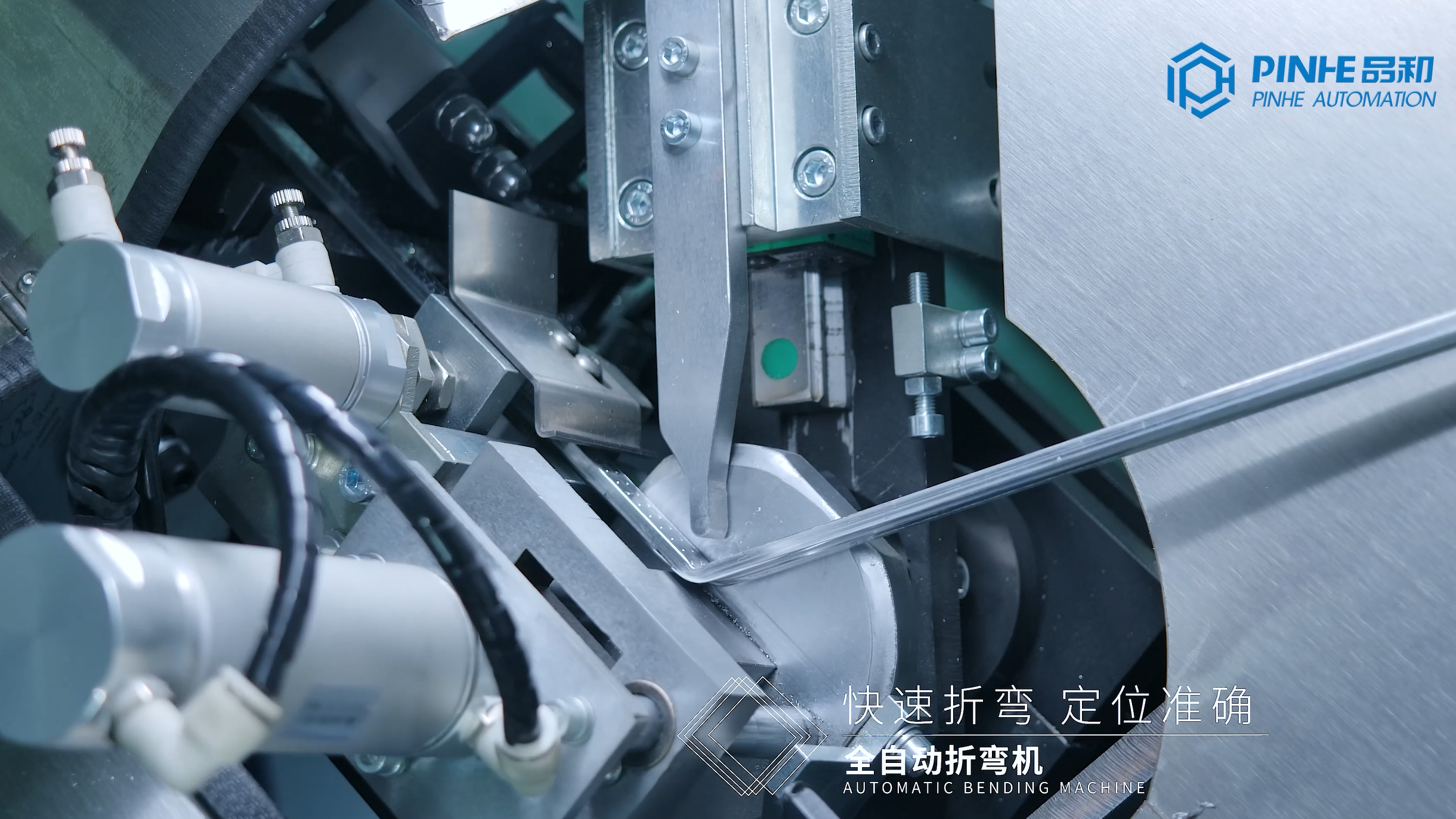

    details of bar bending machine

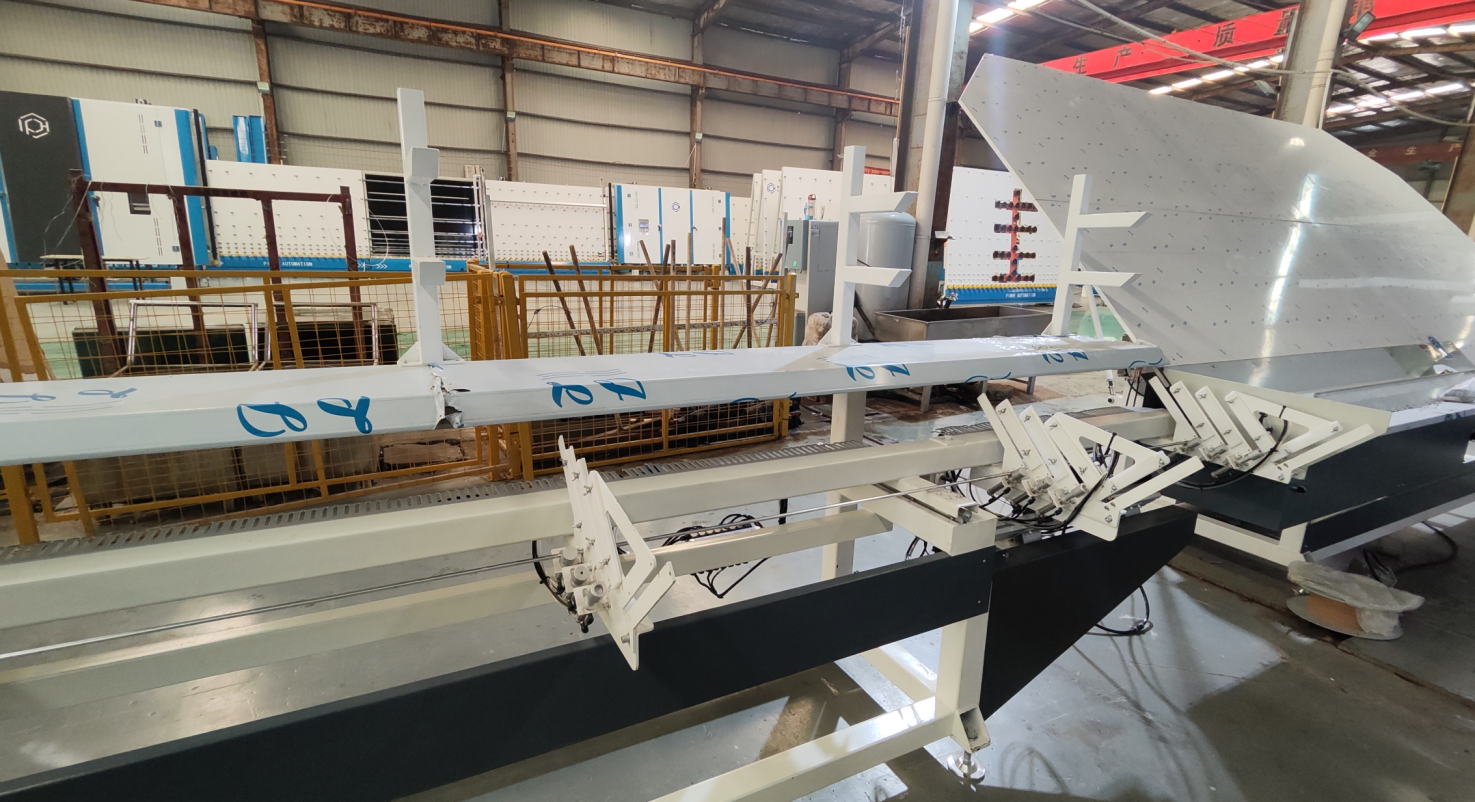

    Four automatic storage troughs can store 4 different specifications and models of aluminum bars, and are fully automatic in loading.

    details of automatic storage

    With high-speed continuous production, the operator only needs to ensure there is material in the hopper and remove the bent aluminum frames from the bending machine. The bending machine automatically stops after processing the set number of frames.
    The bending speed automatically adjusts according to the size of the aluminum frame, preventing deformation of large frames and ensuring high-speed continuous processing of small frames.
    The aluminum bars are automatically connected, cut, and bent, with intelligent automatic avoidance of joints and arcs between the bars.
    Aside from cutting losses, zero-waste processing is achieved.

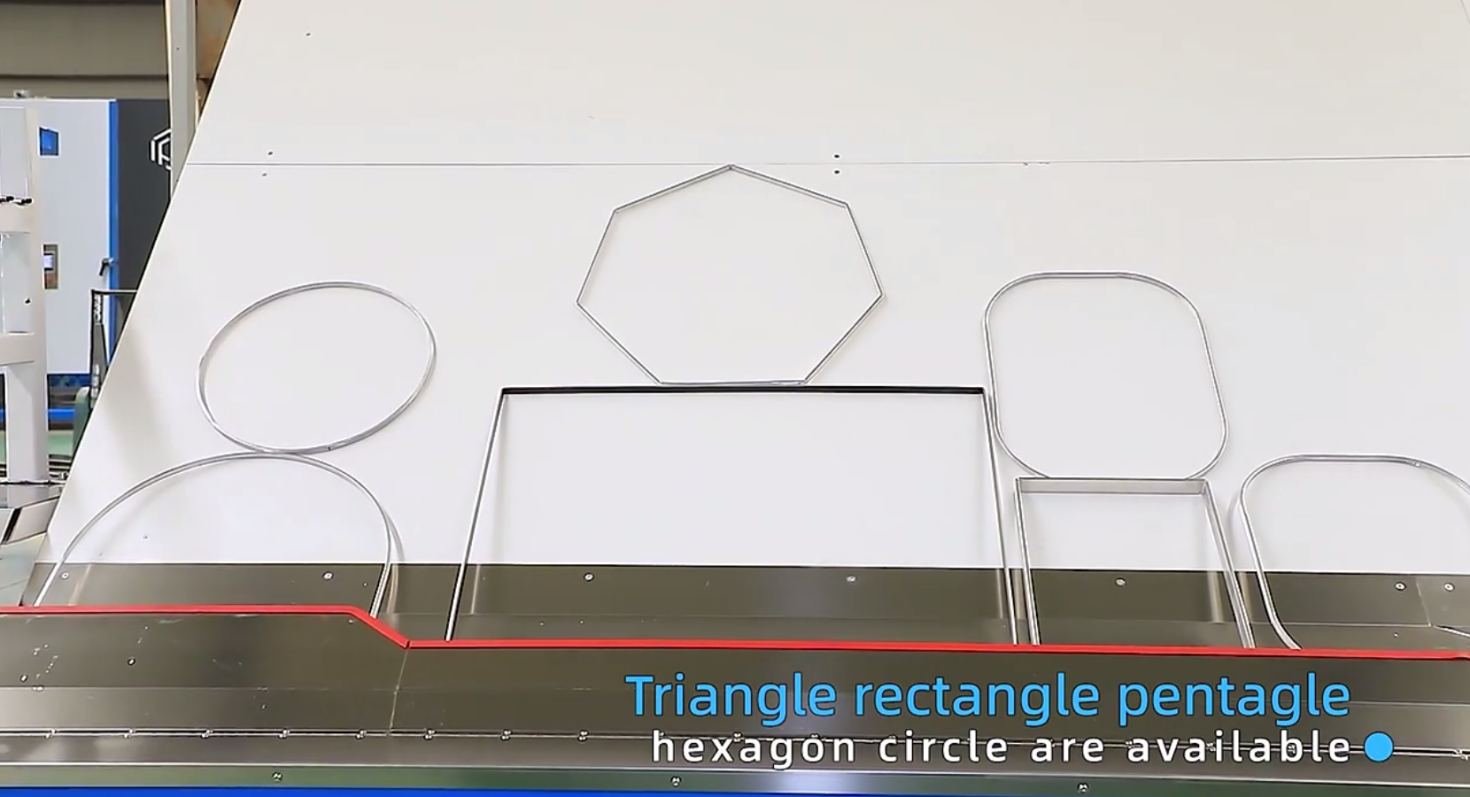

    Curved aluminum frames can be bent, and special-shaped frames can be bent into triangles, rectangles, regular pentagons, hexagons, octagons, arcs, and other shapes.

    different aluminum frames can be bent

    All functions are manually operable for debugging and emergency repairs; the system automatically resets upon startup.

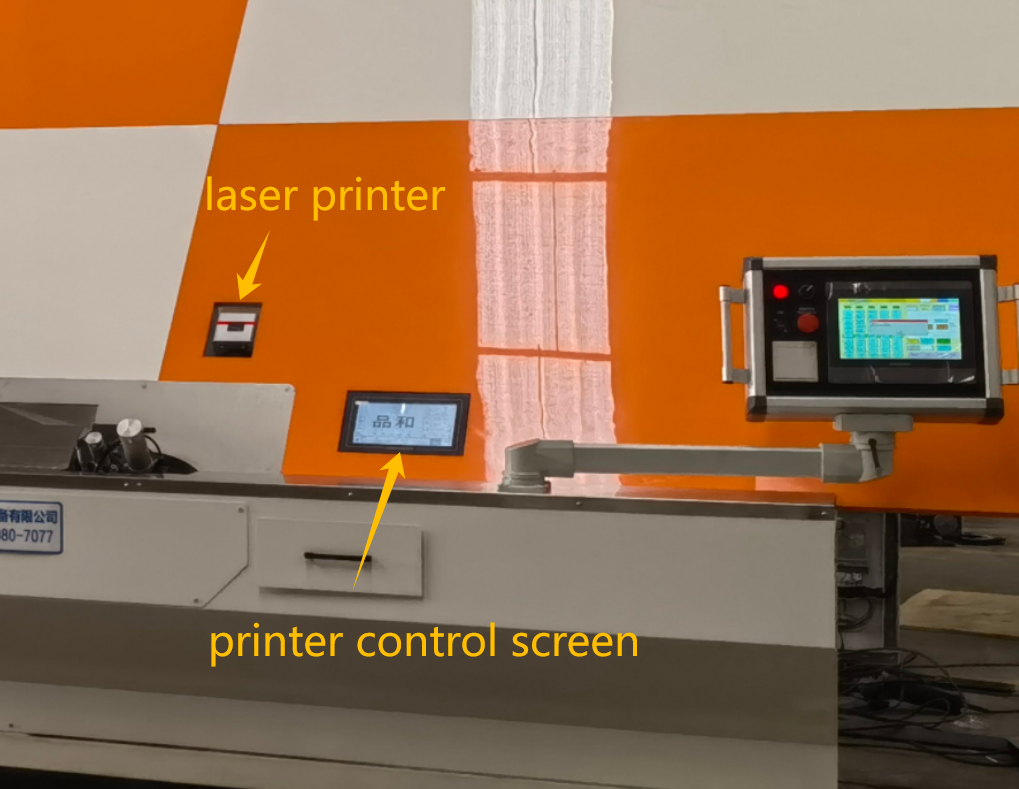

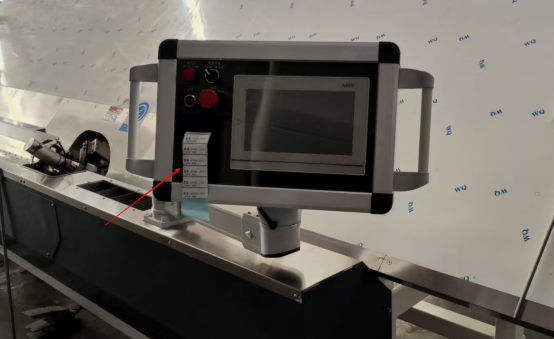

    Features label printing and USB data import.

    USB import
