Butyl Sealant Extruder MachineDJT06

The Butyl Rubber Coating Machine is essential for insulating glass production. Featuring an advanced automated control system, it ensures uniform and precise coating with adjustable width. This equipment is highly efficient, energy-saving, and user-friendly, significantly enhancing sealing quality and productivity. It serves as a vital high-performance solution for modern window and door manufacturing

Butyl Sealant Extruder Machine DJT06

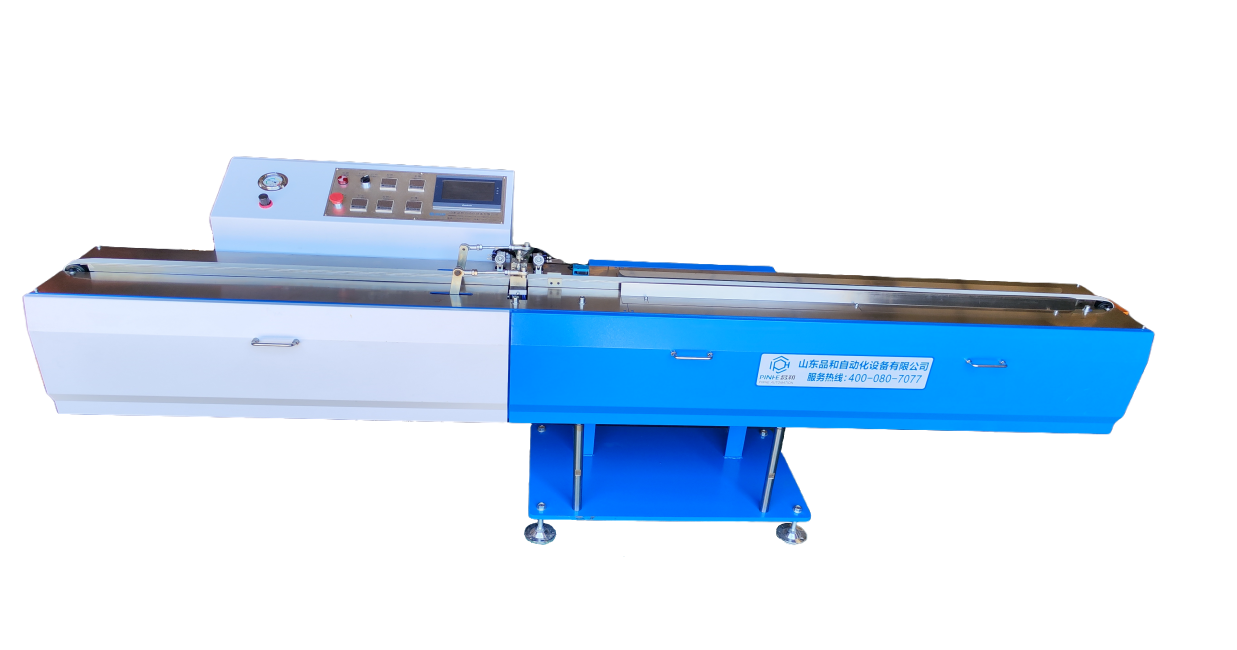

Main Machine Diagram

Overview of the machine
Suitable for the first sealing of insulating glass aluminum spacer strips.
The overall structure is modular, with low failure rate and easy maintenance.
Adopts advanced gas-liquid boosting technology, in order to maintain stable glue output performance.
Five-level variable speed adjustable.
Real-time display of glue quantity and early warning.
The nozzle width can be set via the touch screen, automatically adjust and quickly positioned.
Butyl glue loading capacity is 14KG, and the processing aluminum strip width is 4-30mm.
The fuel tank is automatically refueled, which is clean and labor-saving.
Features and advantages

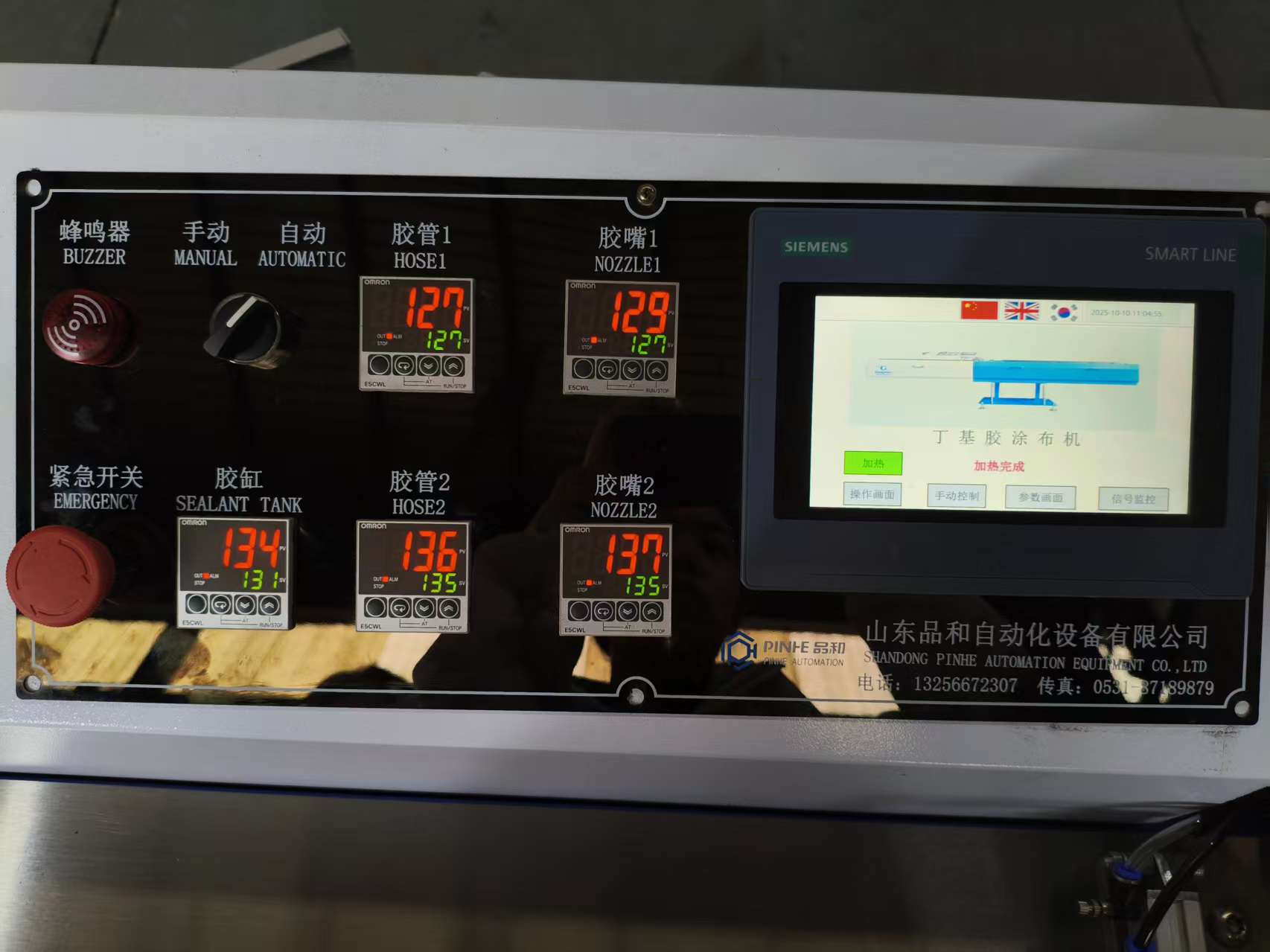

The electrical system is controlled by PLC and consists of sensors, PLC, touch screen, inverter and electrical components.
Touch screen temperature control, high precision, easy operation; multi-point temperature control, precise heating.
Control Panel

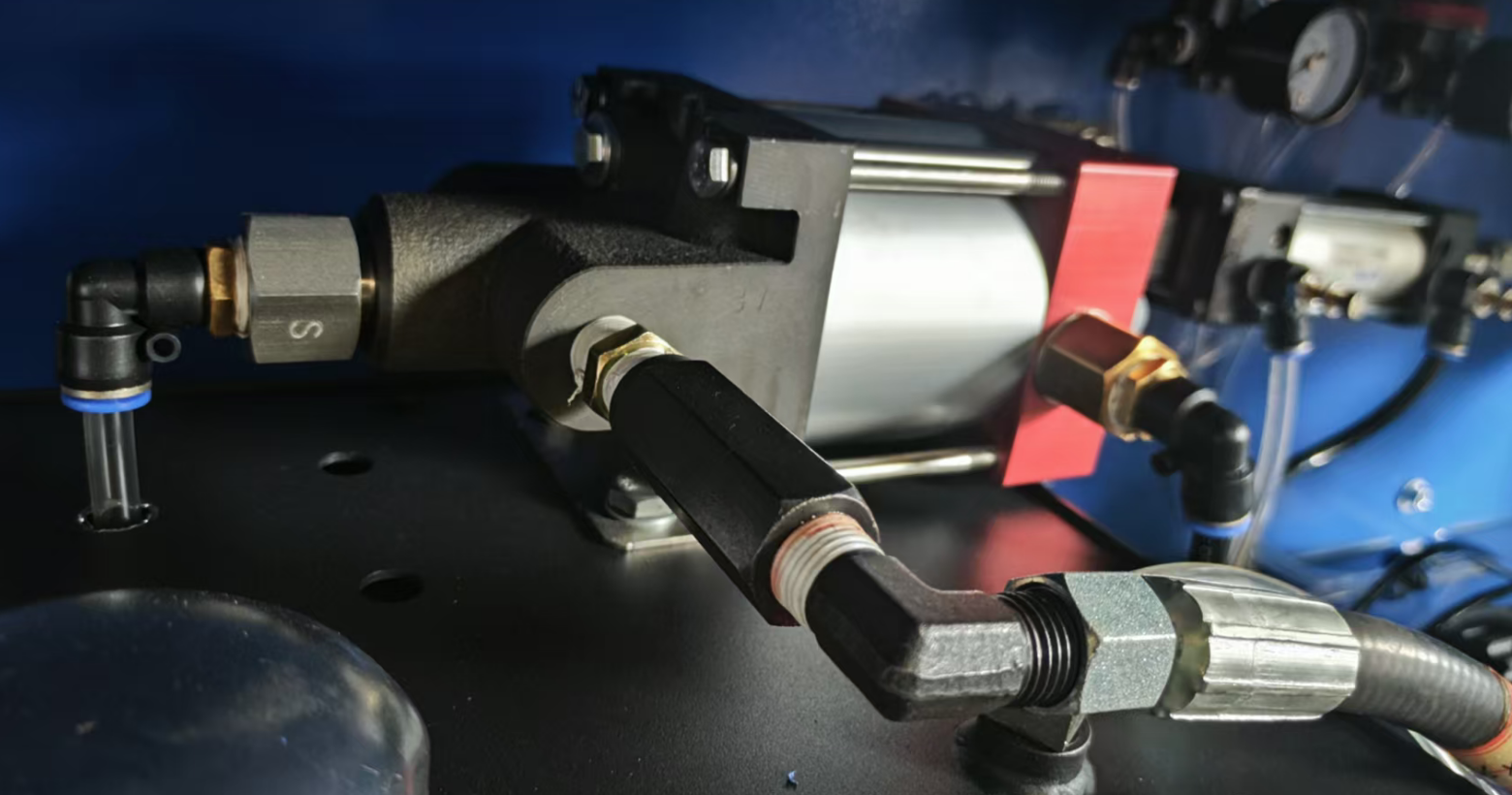

Adopts Germany MAXIMATOR brand pump motor, higher pressure and more stable quality.
pump motor

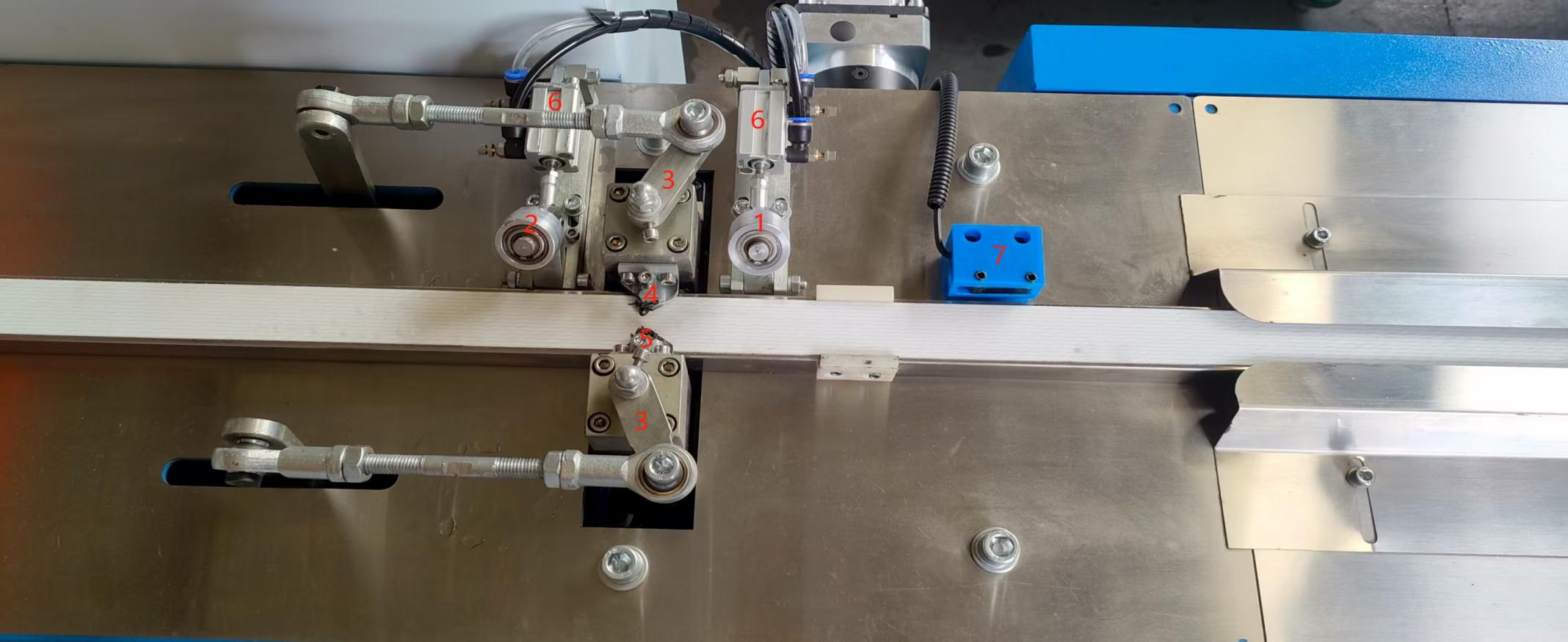

The nozzle width can be adjusted via the touch screen, with a fast response speed. In addition, the nozzle adopts an independent design and is wear-free, solving the pain point of glue leakage in traditional equipment.

independent design nozzle

The oil tank is automatically refilled, clean and labor-saving; the double pump design doubles the oil supply.

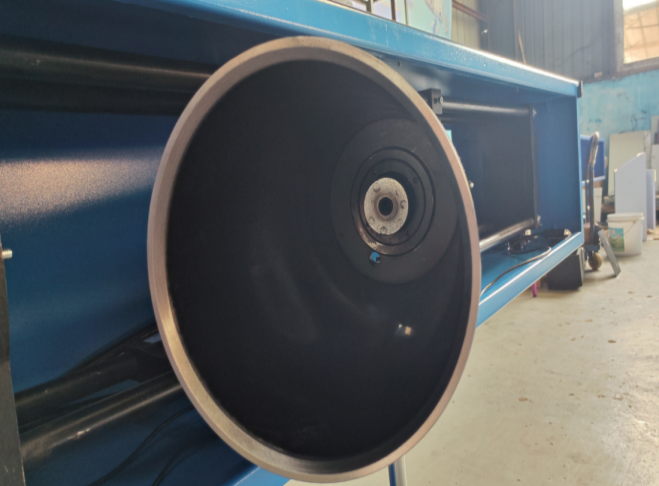

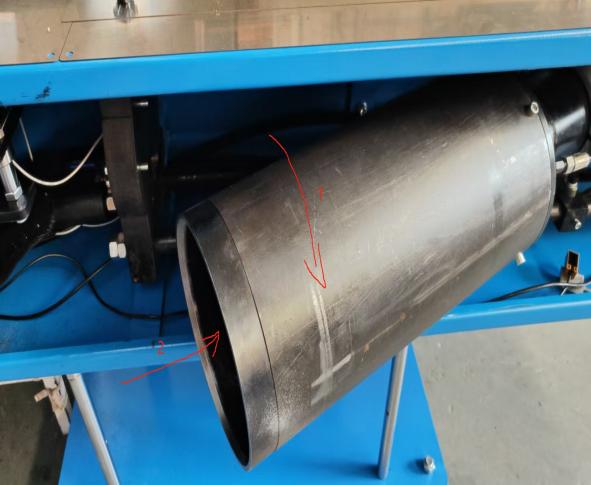

The glue pump is designed to swing outwards for quick and easy glue change.

Glue pumpGlue pump

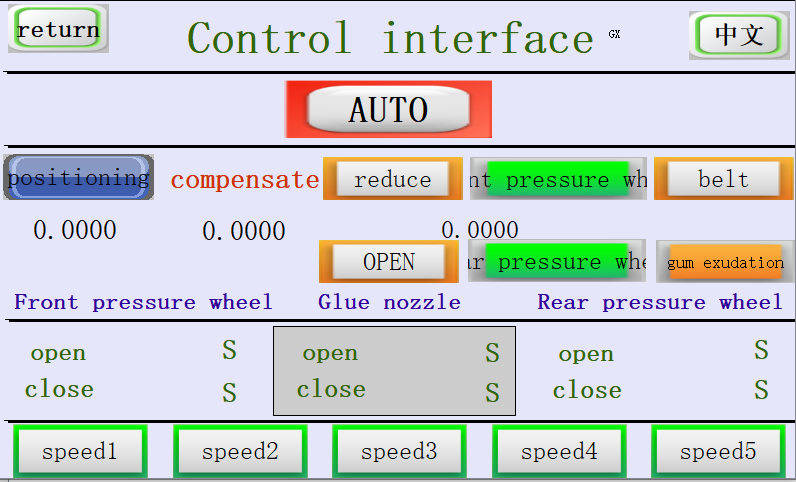

The delay of the glue nozzle switch is adjustable to ensure uniform and full glue application.

Control interface

Heat insulating system can be added for low-temperature areas(When remarked in contract).
