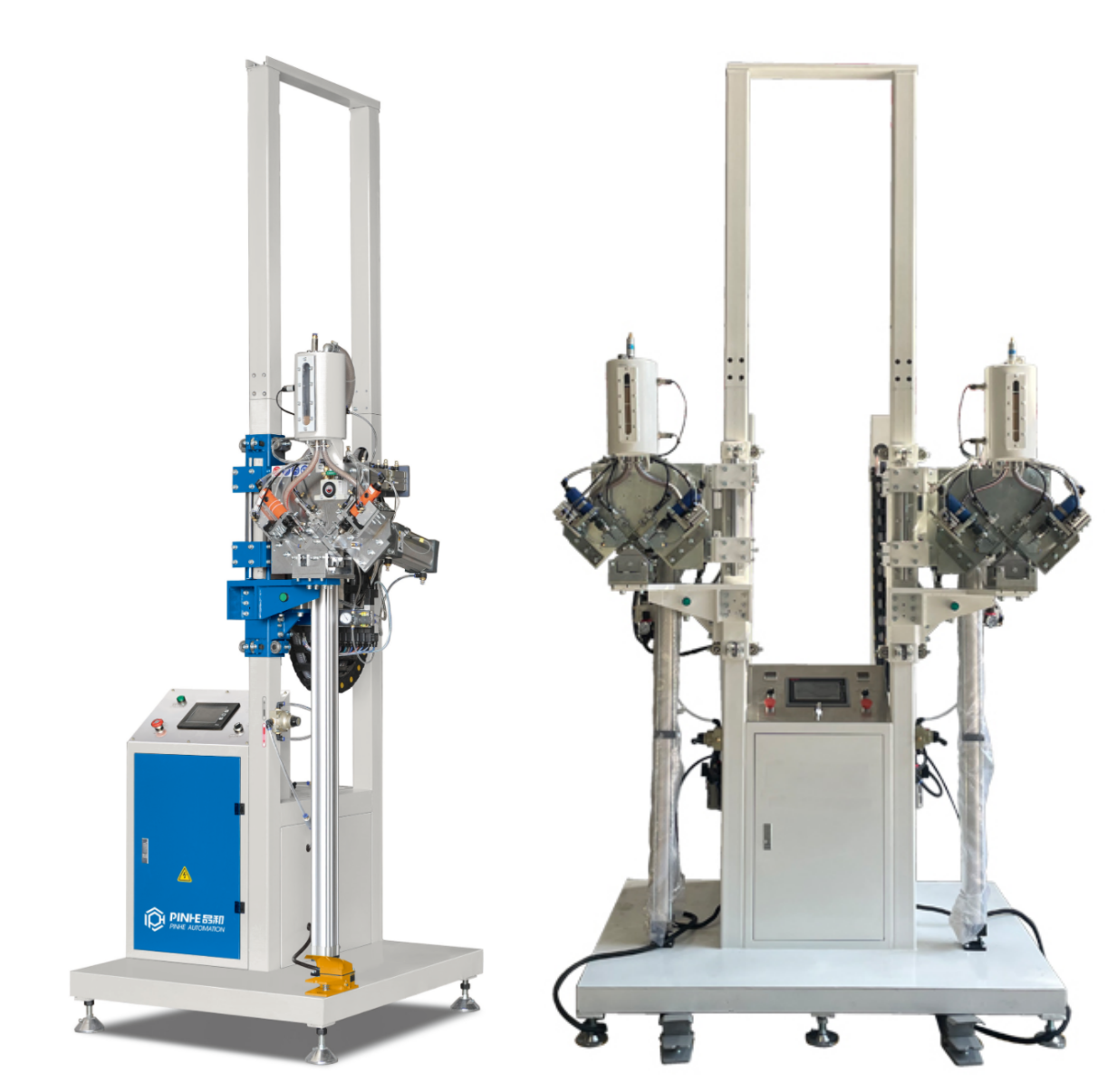

Automatic Position Molecular Sieve Filling Machine FZS02

Engineered for precision, our high-capacity adsorbents deliver exceptional moisture and impurity removal, even in the most demanding environments. Boost your process efficiency, protect your equipment, and ensure flawless product purity. Partner with us for reliable, world-class separation technology that powers your growth

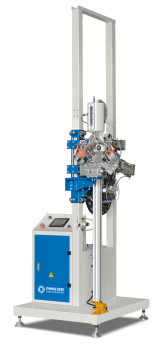

Automatic Molecular Sieve Filling Machine

FZS02

Overview of the machine

Suitable for punching insulating glass aluminum spacer and filling molecular sieve.

PLC control system, human-machine interface, easy to operate.

Filling under closed conditions solves the problem of water vapor absorption failure of desiccant, and improves efficiency and service life of insulating glass.

Imported brands are adopted for core controls.

Punching, filling and automatic sealing in the middle of the back of aluminum strip.

Can be filled with automatic bending aluminum frame and ordinary straight angle aluminum frame.

The filling height can be adjusted according to the size of aluminum frame.

Unique advanced feeding device can automatically re-fill desiccant.

Features and advantages

The filling machine's main frame is welded steel, and the auxiliary frame is connected to the main frame with bolts. The remaining parts are precision machined, galvanized, and then installed on the main and auxiliary frames.

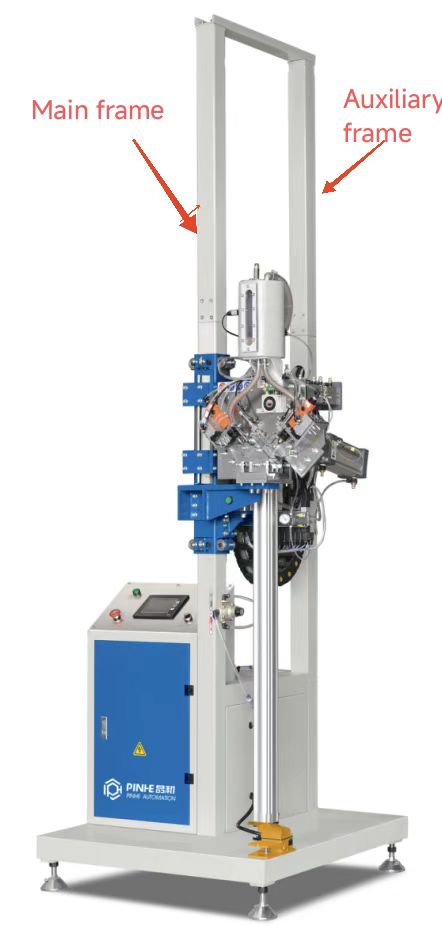

Overview of Sieve filling machine

The filling speed can be adjusted by the flow valve, and the filling time can be set by the touch screen to control the amount of molecular sieve filled into the aluminum spacer.

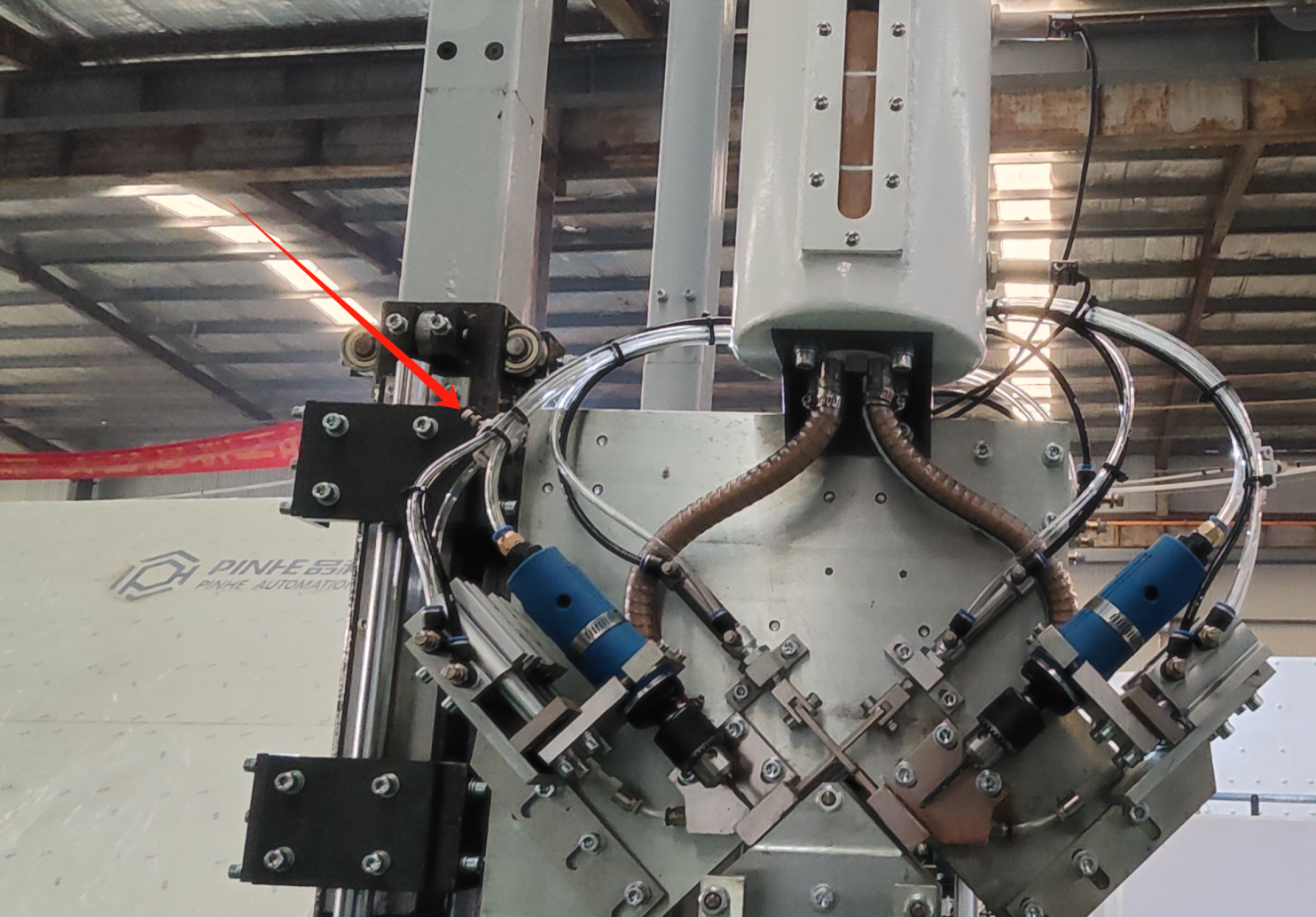

details of flow valve

The different functions of each station (clamping, punching, filling, sealing) are realized according to the relative displacement between the aluminum frame and the parts. The execution, recovery and action sequence of each station are completely controlled by the PLC program, which is easy to operate and highly efficient.

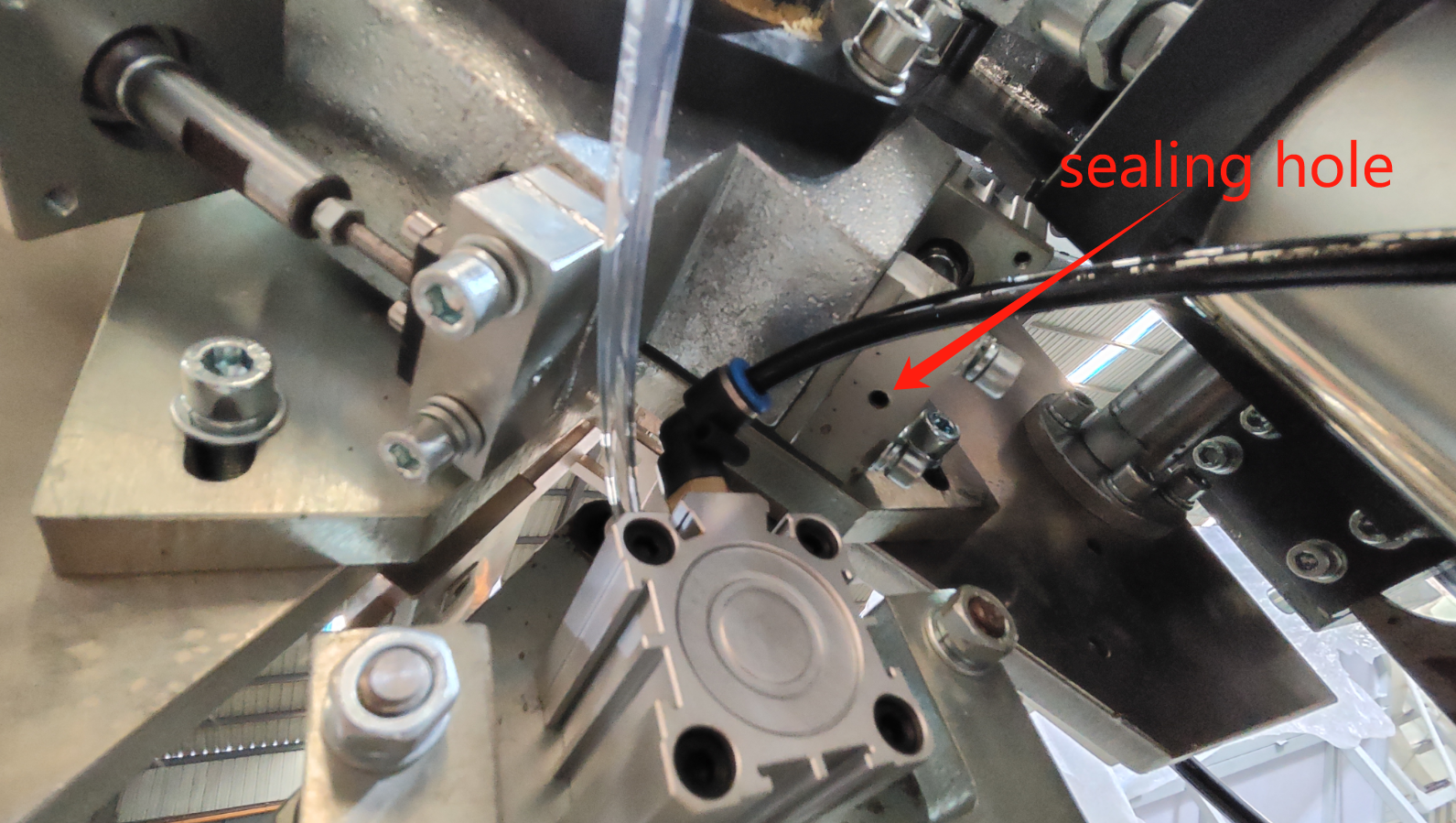

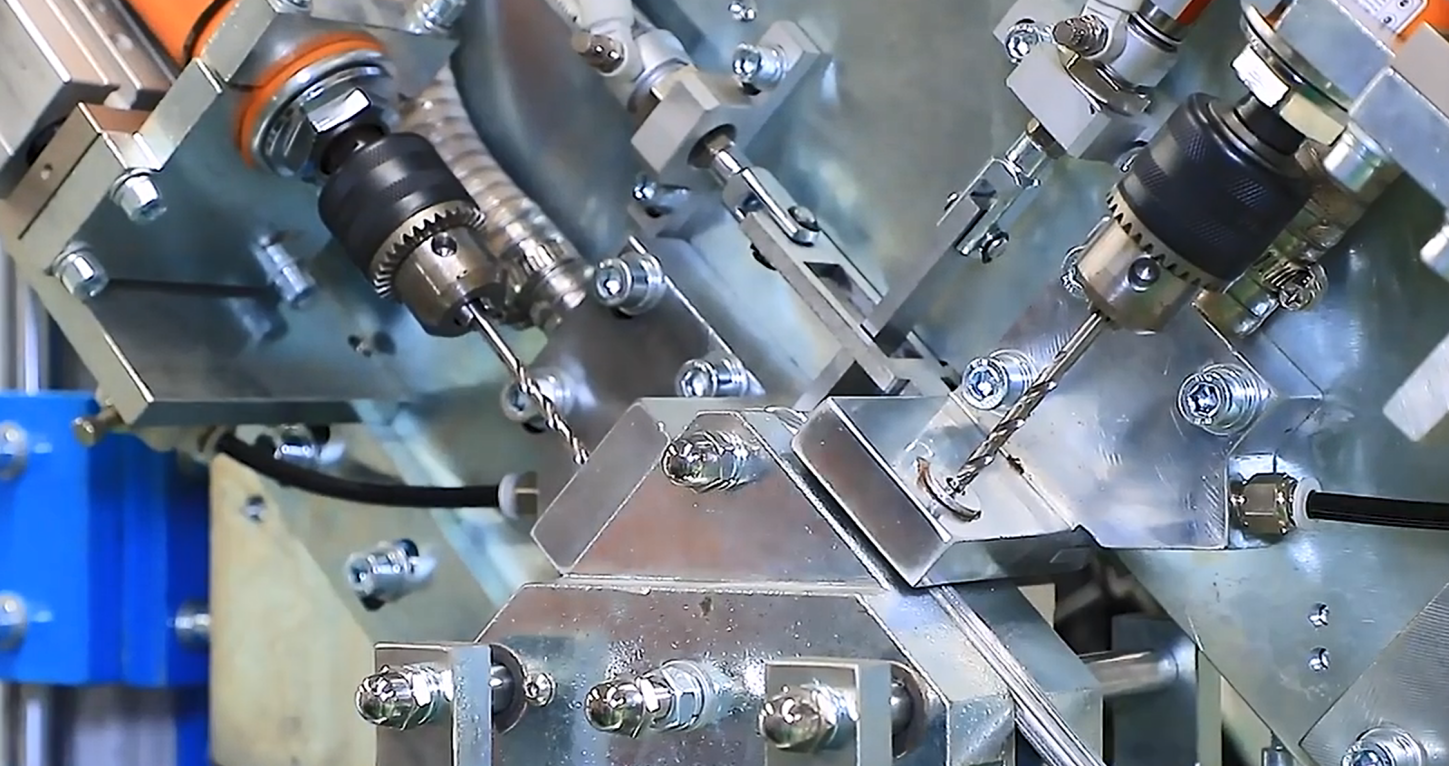

details of sieve filling machine details of sealing hole

The hand-pull valve controls the lifting of the machine head to adapt to different aluminum frame sizes.

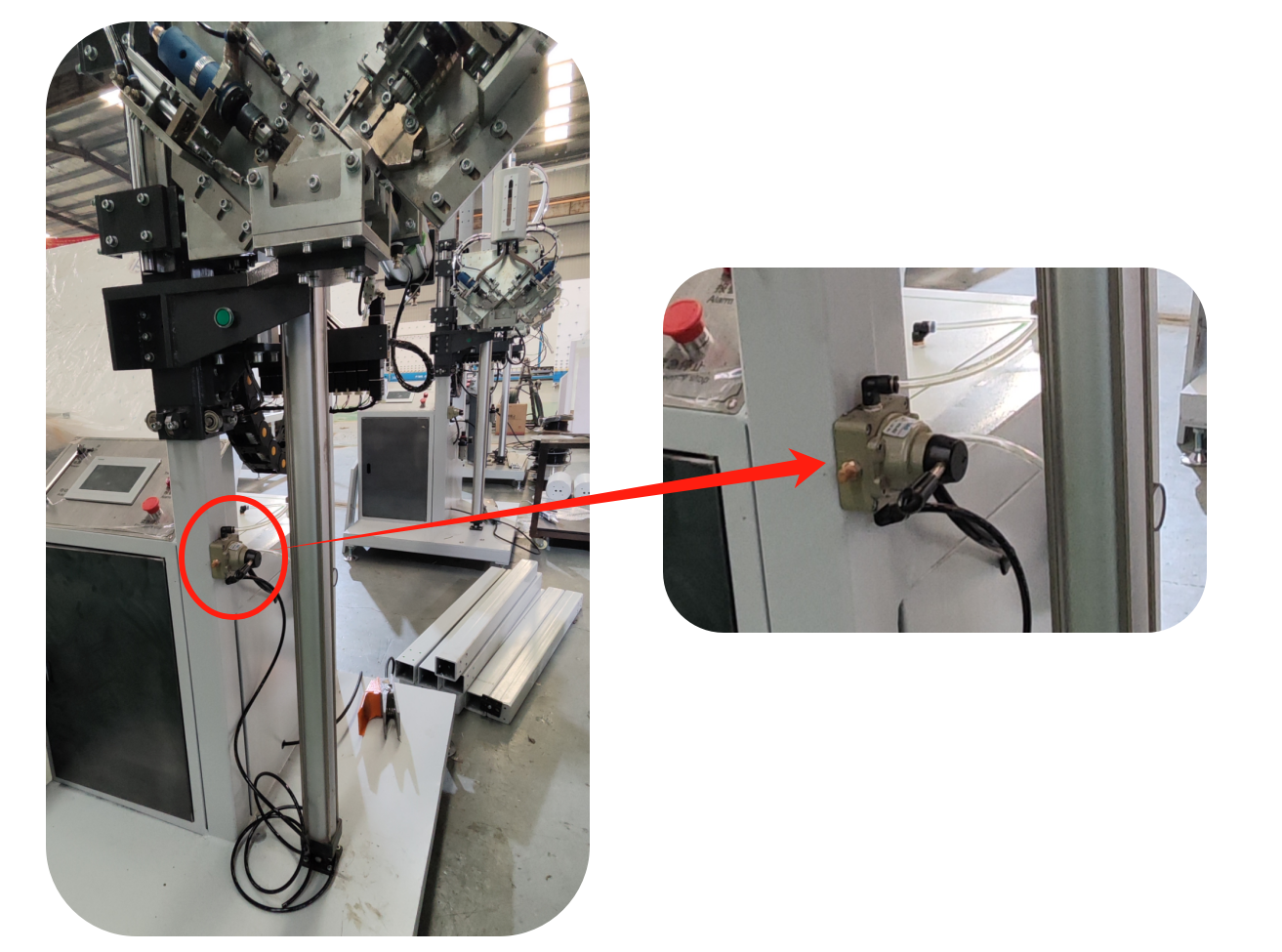

details of hand-pull valve

All cylinders are made of Taiwan AirTAC or other high-quality brands, thus ensuring the accuracy and life of the system. Each cylinder is equipped with a speed regulating quick-connect joint to adjust the reciprocating speed.
