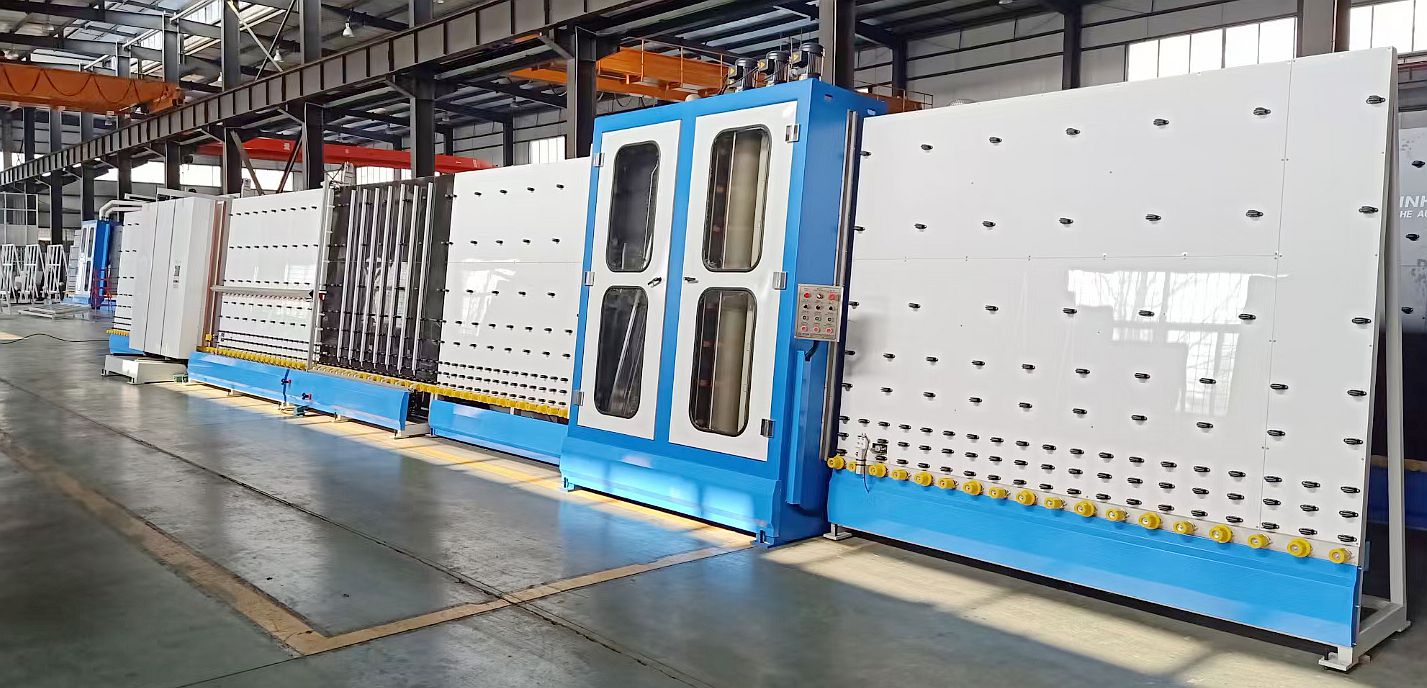

PINHE Automatic Gas Filled Insulating Glass Production Line 2000mm 2500mm 2800mm 3000mm

1. The vertical gas filled insulating glass production line is a special equipment for grooved aluminum insulating glass, with high automation and high production efficiency.
2. It includes seven sections:
loading section,
washing and drying section,
discharging section,
aluminum spacer installing section,
external assembly section,
Gas filling and panel press section (filling argon gas inside the panel),
discharging section.

Download

PINHE Automatic Gas filled Insulating Glass Production Line 2000mm 2500mm 2800mm 3000mm

LBG2000/2500/2800/3000

Overview of the whole machine

1. All frames of the automatic gas filled insulating glass production line are welded with thick profiles and have high structural strength. The aluminum bar assembly section adopts an aluminum profile hollow structure for easy inspection.

2. The automatic gas filled insulating glass production line is fully functional, with functions such as two layer glass, three layer glass, special-shaped, step glass, outer panel pressing, inner panel pressing, and in-panel gas filling.

3. Loading section:

The loading section of Pinhe automatic gas filled insulating glass production line is equipped with a coating detection device, which can detect the film layer(like low-e film) reliably and prevent damage to the film layer.

4. The washing and drying section:

The whole washing section of automatic gas filled insulating glass production line are welded with stainless steel materials. The upper and lower top plates are made of 8mm thick stainless steel plates. 3 pairs of soft brushes are all made of Nylon 1010 material, controled by 3 independent motors. The high-power high-pressure fan and stainless steel wind knife adopted to automatic gas filled insulating glass production line, which has low noise and fast air drying speed. The fan runs intermittently and automatically runs at no-load when there is no glass.

5. Aluminum spacer installing section:

Adjustable spacer distance positioning spring valves on the bottom and side of the automatic gas filled insulating glass production line, convenient in operation. Spacer distance and depth can easily be adjusted by the hand wheels on bottom.

6. External press section:

6.1 There are two functions for this automatic gas filled insulating glass production line machine:

When making argon filled glass unit, it will be assembled inside the panel after filling gas;
When making normal glass unit no need to fill gas, can be pressed outside the panel, then the working efficiency will be higher.

6.2 Glass positioning block and press wheel adopted in this section, to guarantee the glass sheets being pressed in right position.

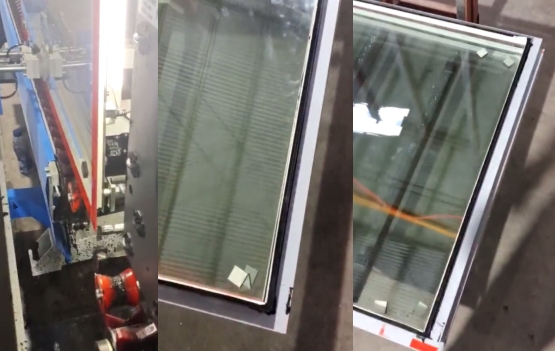

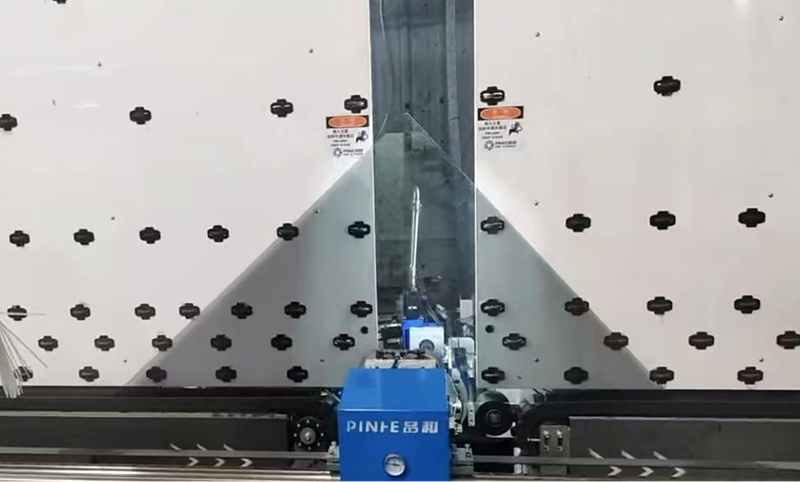

7. Gas filling and panel press section: Theautomatic gas filled insulating glass production line fill argon gas and finally press the glass unit at this section

7.1 Glass size detectors at the beginning, then the machine open certain numbers of gas nozzles. Gas nozzles which are not open will not release argon, to avoid waste of argon gas and save cost.

7.2 Argon gas will be filled into the glass unit from bottom, and both left and right sides of the glass unit will be well sealed during fill process, the efficiency is high and also saving gas.

7.3 Thisautomatic gas filled insulating glass production line automatically detect the pressure of argon gas and alarm when the pressure is low.

Item code	LBG2000	LBG2500		LBG2850	LBG3060
Power supply	380v 50Hz(Optional)
Total power	36.0kw	46.0kw		70.0kw	90.0kw
Max working size	2000×4000mm	2500×4000mm		2800×5000mm	3000×6000mm
Min working size	280×450mm
Glass sheet thickness	3~12mm		3~30mm
Max I.G unit thickness	12~60mm		12~90mm
Glass Washing Speed	2~12m/min
Working speed	2~40m/min
Air Pressure	1MPa
Water electrical conductivity	≤40μs/cm
Overall dimension	21000×3000×2910mm	25300×3200×3600mm		30500×3200×3900mm	42000×3200×3900mm

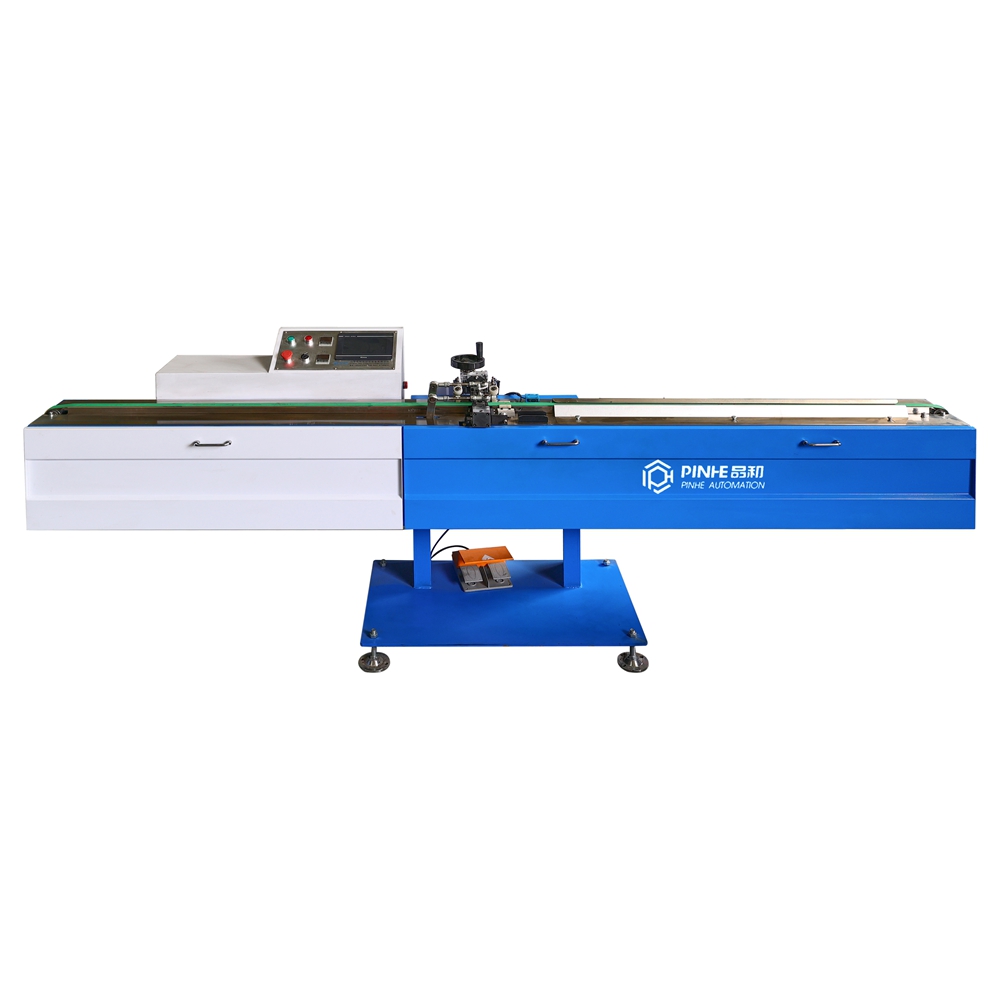

PINHE High Speed Butyl Machine Extruder for Insulating Glass DJT02

The butyl extruder machine is a mechanical device used to coat butyl sealant on both sides of the aluminum frame to prepare for the next step of assembly. The butyl extruder machine is mainly composed of five parts: gluing system, hydraulic system, pneumatic system, electrical system and heating system. It has advanced design, compact structure, clean and labor-saving, and easy to use.

PINHE Automatic Insulating Glass CNC Sealing Machine Line ZNJ2030 2540 2850 3060

1. This machine is used for the secondary sealing of insulating glass 2. PINHE Automatic Insulating Glass CNC Sealing Line is suitable for large-scale production, high product quality, low labor intensity, labor saving, and high production efficiency. 3. The whole machine adopts a human-machine interface, and the operation is simple, convenient and intuitive.
