Pinhe High Speed CNC Butyl Extruder Machine DJT06

1. Overview of Pinhe High Speed CNC Butyl Extruder Machine

1. Suitable for the first sealing of insulating glass aluminum spacer strips.
2. The overall structure is modular, with low failure rate and easy maintenance.
3. Pinhe High Speed CNC Butyl Extruder Machine adopts advanced gas-liquid boosting technology, in order to maintain stable glue output performance.
4. Five-level variable speed adjustable.
5. Real-time display of glue quantity and early warning.

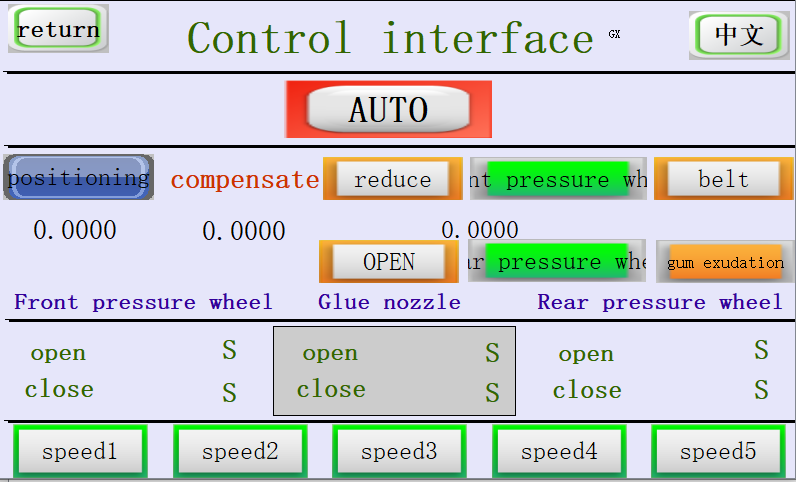

6. The nozzle width can be set via the touch screen, automatically adjust and quickly positioned.
7. Butyl glue loading capacity is 14KG, and the processing aluminum strip width is 4-30mm.
8. The fuel tank is automatically refueled, which is clean and labor-saving.

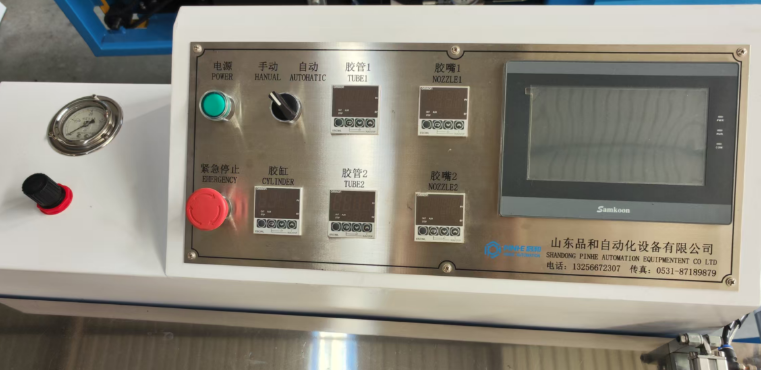

1. The electrical system is controlled by PLC and consists of sensors, PLC, touch screen, inverter and electrical components.
2. Touch screen temperature control, high precision, easy operation; multi-point temperature control, precise heating.

3. The nozzle width of Pinhe High Speed CNC Butyl Extruder Machine can be adjusted via the touch screen, with a fast response speed. In addition, the nozzle adopts an independent design and is wear-free, solving the pain point of glue leakage in traditional equipment.

4. The oil tank is automatically refilled, clean and labor-saving; the double pump design doubles the oil supply.

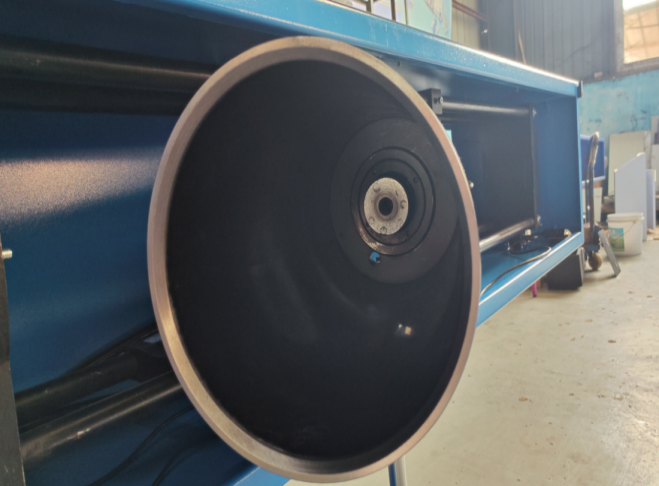

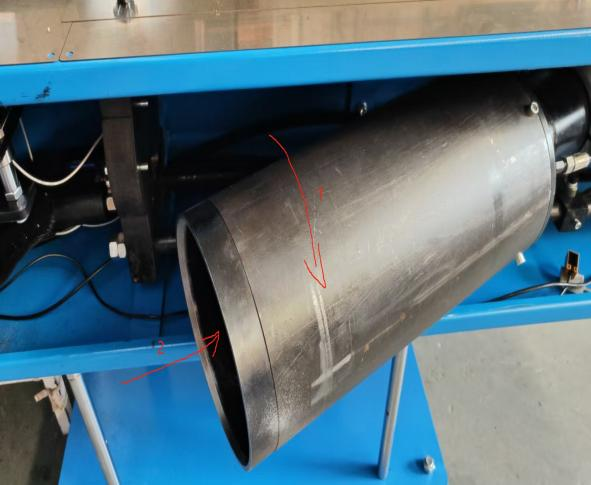

5. The glue pump is designed to swing outwards for quick and easy glue change.

6. ThePinhe High Speed CNC Butyl Extruder Machine delay of the glue nozzle switch is adjustable to ensure uniform and full glue application.

1. Arc gluing function
